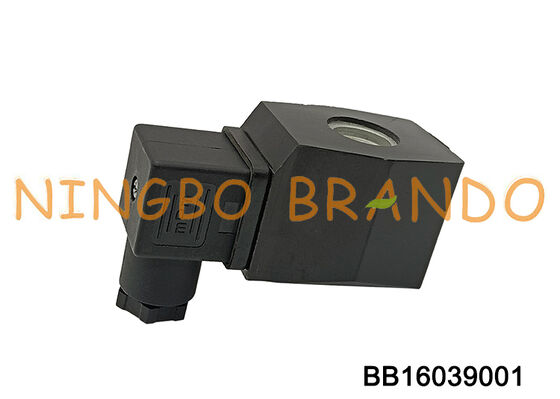

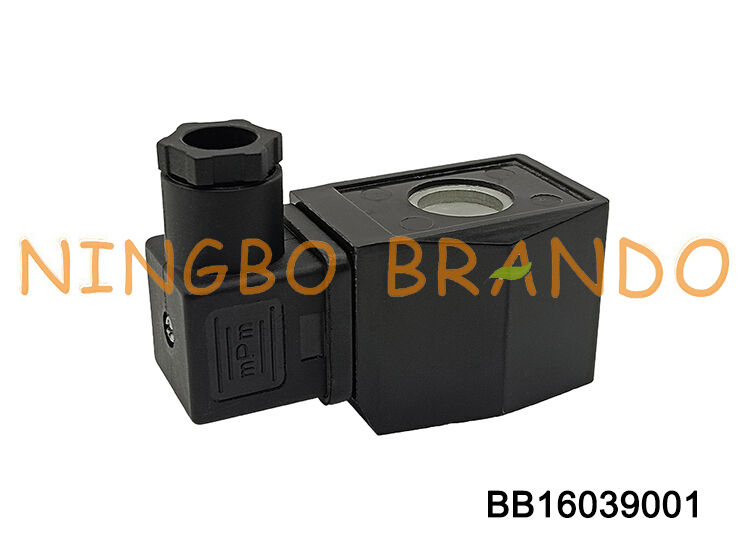

Name: CKD Type Coil AB410 Plastic Solenoid Valve Coil Inner Hole 16mm 220V 24V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: BB16039001
Price: 49.10 USD
Availability: InStock

Home Products Solenoid Valve Coil

CKD Type Coil AB410 Plastic Solenoid Valve Coil Inner Hole 16mm 220V 24V

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	BB16039001

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,PayPal,Western Union
Supply Ability:	250000 pieces per month

Contact Now

Detailed Product Description

Product Name:	Solenoid Valve Coil	Voltage:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power:	26VA, 18W	Connection:	DIN43650A
Ordering Code:	AB410	Insulation Class:	F, H
Protection Class:	IP65	Coil Hole Diameter:	16mm
Highlight:	CKD coil plastic coil AB410 , AB410 Solenoid Valve Coil , CKD Coil AB410

CKD Type Coil AB410 Plastic Solenoid Valve Coil Inner Hole 16mm 220V 24V

This solenoid coil is popularly used in water solenoid valves, like 2W040-10, 2W160-15, 2W200-20, 2W250-25, 2S040-10, 2S160-15, 2S200-20, 2S250-25. Voltage: 220VAC, 110VAC, 24VAC, 24VDC, 12VDC, Power: 26VA, 18W. Solenoid valves consist of a coil, plunger and sleeve assembly. Solenoid valves are the most frequently used control elements in fluidics. They are commonly used to shut off, release, dose, distribute or mix fluids. For that reason, they are found in many application areas.

Dimension & Data of Water Solenoid Valve Coil, Armature:

ab410 dimension

BRANDO Model	BB16039001
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power	26VA, 18W
Other voltage and power can be customized
Insulation Class	F, H
Connector	DIN43650A

BRANDO Model	BAPC216038501
2 Way or 3 Way	2 Way
NC or NO	NC
Plunger Tube Material	Stainless Steel
Moving Core Material	430FR
Shading Ring Material	Copper
Seal Material	NBR, EPDM, FKM
Mounting Type	Thread

Video of Coil For Water Solenoid Valve:

BRANDO Solenoid Valve Coils Production Video:

More Solenoid Valves for you to choose:


Brass Solenoid Valve	Stainless Steel Solenoid Valve	Plastic Solenoid Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Tag:

Contact Person: Mr. Brandon Bao

Tel: 86-13454729544

Fax: 86-574-83879820
