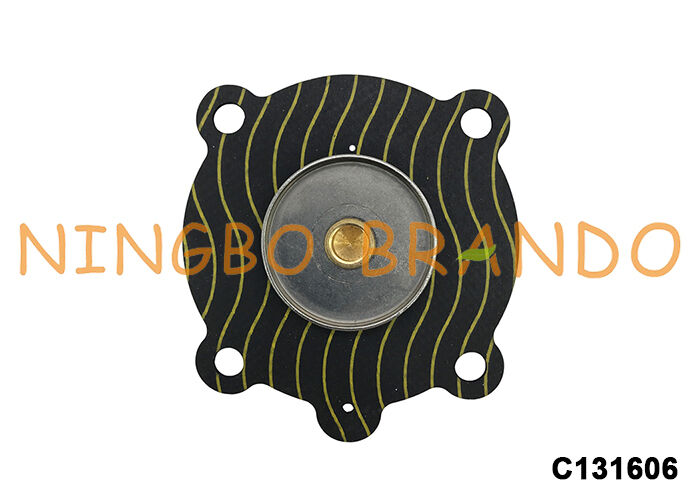

C131606 ASCO Type SCE238D004 SCE238D009 Solenoid Valve Diaphragm Kit

C131606 ASCO Type SCE238D004 SCE238D009 Solenoid Valve Diaphragm Kit

  • C131606 ASCO Type SCE238D004 SCE238D009 Solenoid Valve Diaphragm Kit
  • C131606 ASCO Type SCE238D004 SCE238D009 Solenoid Valve Diaphragm Kit
C131606 ASCO Type SCE238D004 SCE238D009 Solenoid Valve Diaphragm Kit
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: None
Model Number: C131606
Payment & Shipping Terms:
Minimum Order Quantity: 20sets
Price: Negotiation
Packaging Details: Plastic bag, Carton, Pallet
Delivery Time: 4 to 5 working days
Payment Terms: T/T,Western Union,PayPal
Supply Ability: 100000sets per month
Contact Now
Detailed Product Description
Product Name: Solenoid Valve Diaphragm Diaphragm Material: NBR
Fitted Solenoid Valve Model No: SCE238D004, SCE238D009 Fitted Solenoid Valve Port Size: 3/4''
Highlight:

ASCO Diaphragm C131606

,

ASCO Diaphragm Kit C131606

,

ASCO Membrane C131606

C131606 ASCO Type SCE238D004 SCE238D009 Solenoid Valve Diaphragm Kit


C131606 diaphragm is used in ASCO SCE238D004, SCE238D009 solenoid valves. The diaphragm is the most important part of the solenoid valve. When the solenoid valve is energised, the trapped air above solenoid valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the solenoid valve is de-energised, air escapes through bleed hole of main solenoid valve to balance the diaphragm pressure and instantly closes the solenoid valve.

Reference No:
C131600 C131618 C131606 C131609 Diaphragm
BRANDO
Model No
Ref No
Fitted Solenoid Valve
Model NO
Fitted Solenoid Valve
Port Size
Diaphragm Material
238D
C131600
SCE238D001, SCE238D002, SCE238D006, SCE238D007
3/8'', 1/2''
(DN12mm)
NBR (Standard)
EPDM (Optional)
FKM (Optional)
238D15
C131618
SCE238D003, SCE238D008
1/2''
(DN15mm)
238C
C131606
SCE238D004, SCE238D009
3/4''
(DN20mm)
238E
C131609
SCE238D005, SCE238D010
1''
(DN25mm)


C131606 Dimension:
238C-DRW

BRANDO Production:
Solenoid Valve Production

Related Products:

SCE238D002 Solenoid Valve (2)
MP-C-165 Coil
DIN43650B Connector
Brass Solenoid Valve Solenoid Valve Coil DIN43650B Connector


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!

Tag:

Pulse Valve Diaphragm,

Solenoid Valve Diaphragm,

NBR Diaphragm
