Name: Water Solenoid Valve Coil AB310 DC12V DC24V AC24V AC110V AC220V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: BB13531508
Price: 49.10 USD
Availability: InStock

Home Products Solenoid Valve Coil

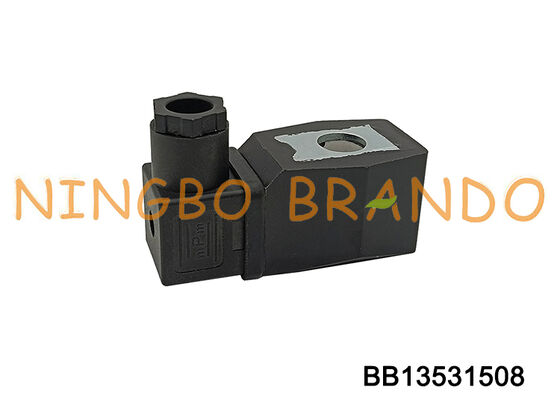

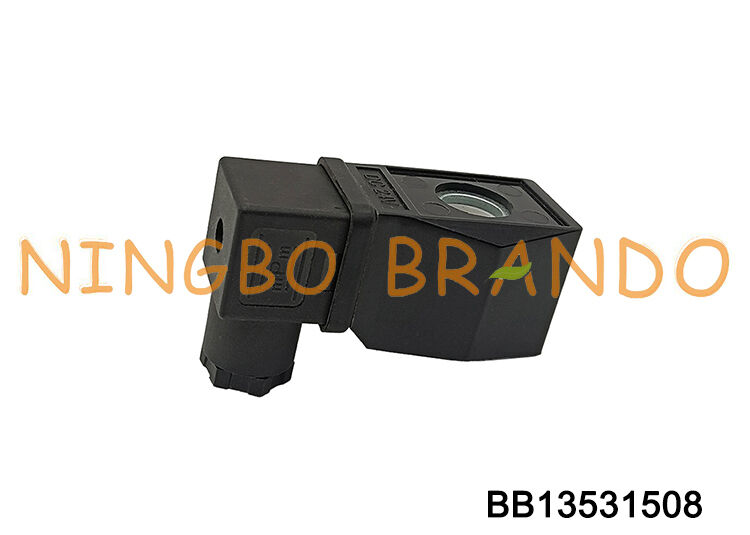

Water Solenoid Valve Coil AB310 DC12V DC24V AC24V AC110V AC220V

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	BB13531508

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,PayPal,Western Union
Supply Ability:	250000 pieces per month

Contact Now

Detailed Product Description

Product Name:	Solenoid Valve Coil	Voltage:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Connector:	DIN43650A	Power:	15VA, 12W
Protection Class:	IP65	Insulation Class:	F, H
Highlight:	AB310 Water Solenoid Valve Coil , AB310 Coil , Solenoid valve coil AB310

Water Solenoid Valve Coil AB310 DC12V DC24V AC24V AC110V AC220V

This solenoid coil is popularly used in water solenoid valves, like 2W025-06, 2W025-08, 2S025-06, 2S025-08. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Coil Power: 26VA, 18W. The AB310 solenoid valve coil is a common electromagnetic actuator used in fluid and pneumatic control systems, typically fitted to CKD AB31 series and 2N08 valves. It features a standard inner diameter of 13.5mm–14mm, a height of 32mm–33mm, and is available in voltage options like AC220V and DC24V.

Dimension & Data of Solenoid Valve Coil, Armature:

AB310 Water Solenoid Valve Coil DC12V DC24V AC24V AC110V AC220V 0

BRANDO Model	BB13531508
Ordering Code	AB310
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power	15VA, 12W
Other voltage and power can be customized
Insulation Class	F, H
Connector	DIN43650A

AB310 Water Solenoid Valve Coil DC12V DC24V AC24V AC110V AC220V 1

BRANDO Model	BAPC213532039
Function	2 Way Normally Closed
Plunger Tube Material	Stainless Steel
Seal Material	NBR, EPDM, FKM
Connection Type	M25X1 Thread

Video of Solenoid Valve Coil AB310:

BRANDO Solenoid Valve Coils Production Video:

More Solenoid Valves for you to choose:


Brass Solenoid Valve	Stainless Steel Solenoid Valve	Plastic Solenoid Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
