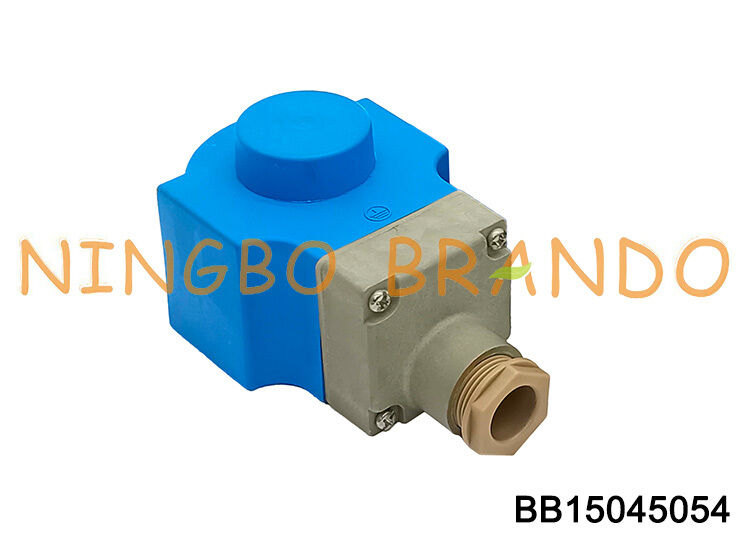

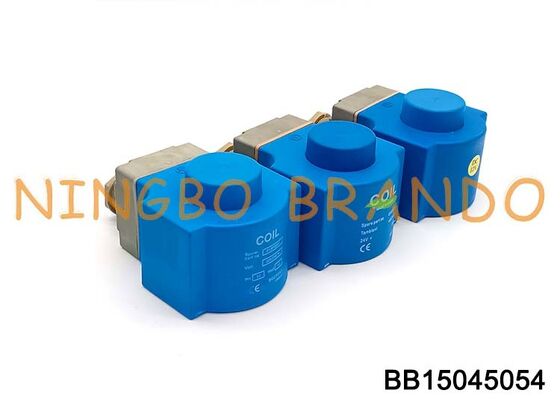

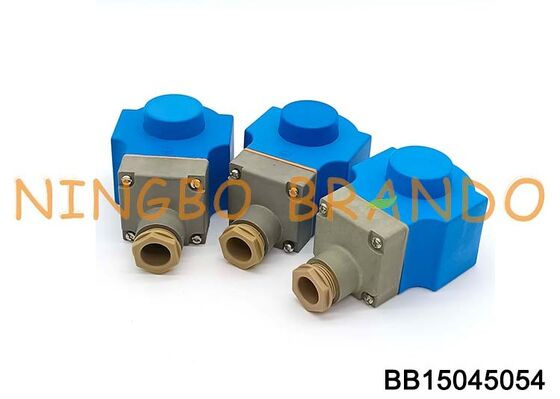

Name: Danfoss Type Solenoid coil BG230AS Terminal box 220-230V AC 018F6801
Brand: Ningbo Brando Hardware Co., Ltd
SKU: BB15045054
Price: 49.10 USD
Availability: InStock

Home Products Solenoid Valve Coil

Danfoss Type Solenoid coil BG230AS Terminal box 220-230V AC 018F6801

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	BB15045054

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	Negotiation
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	Negotiation
Payment Terms:	T/T,PayPal,Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:	Refrigeration Solenoid Valve Coil	Voltage:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power:	26VA, 12W, 20W	Insulation Class:	H
Protection Class:	IP67	Ordering Code:	018F6807, 018F6811, 018F6801, 018F6802, 018F6803, 018F6815, 018F6813, 018F6814, 018F6856, 018F6857
Coil Type:	BG024AS, BG110AS, BG230AS, BG240AS, BG380AS, BG024BS, BG110BS, BG220BS, BG012DS, BG024DS	Connector:	Terminal Box
Highlight:	Danfoss Solenoid Coil 018F6857 , Danfoss Solenoid Coil 018F6801 , Danfoss 018F6815 Coil BG024BS 24V

Danfoss Type Solenoid coil BG230AS Terminal box 220-230V AC 018F6801

This solenoid is used for danfoss refrigeration solenoid valve. Ordering Code: 018F6807, 018F6811, 018F6801, 018F6802, 018F6803, 018F6815, 018F6813, 018F6814, 018F6856, 018F6857; Coil Type: BG024AS, BG110AS, BG230AS, BG240AS, BG380AS, BG024BS, BG110BS, BG220BS, BG012DS, BG024DS; Voltage: 24VAC, 110VAC, 220VAC; Power: 26VA, 12W, 20W; Connector: Terminal Box; Protection Class: IP67; Insulation Class: H.

Ordering Code of Solenoid Coil:

Coil type	Voltages	Power	Frequency (Hz)	Code no
BG024AS	24V AC	12W, 26VA	50	018F6807
BG110AS	110V AC			018F6811
BG230AS	220-230V AC			018F6801
BG240AS	240V AC			018F6802
BG380AS	380-400V AC			018F6803
BG024BS	24V AC		60	018F6815
BG110BS	110V AC			018F6813
BG220BS	220V AC			018F6814
BG012DS	12V DC	20W	DC	018F6856
BG024DS	24V DC	20W	DC	018F6857

Dimension & Data of BG Coil & Armature:

BRANDO Model	BB15045054
Coil Type	BG
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Power	26VA, 12W, 20W
Connector	Terminal Box
Protection Class	IP67
Insulation Class	Class H

Danfoss Type Solenoid coil BG230AS Terminal box 220-230V AC 018F6801 1

BRANDO Model	BAPC215047522
2 Way or 3 Way	2 Way
NC or NO	NC
Plunger Tube Material	Stainless Steel
Moving Core Material	430FR
Shading Ring Material	Copper
Seal Material	PTFE
Seat Type	Thread

Video of BG Solenoid Coil:

BRANDO Solenoid Valve Coils Production Video:

More Refrigeration Solenoid Valves for you to choose:


Danfoss Type Solenoid Valve	Ammonia Solenoid Valve	Castel Type Solenoid Valve

Expansion Valve	Solenoid Valve Coil	Solenoid Valve Armature

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
