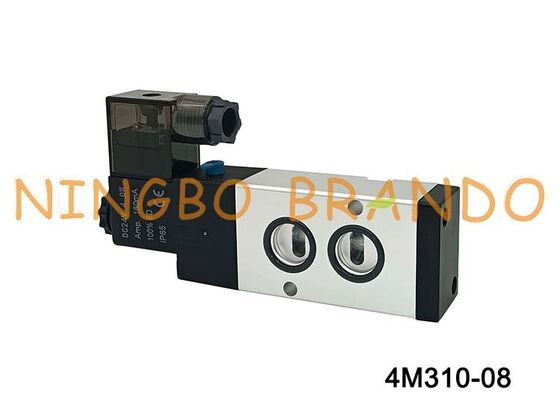

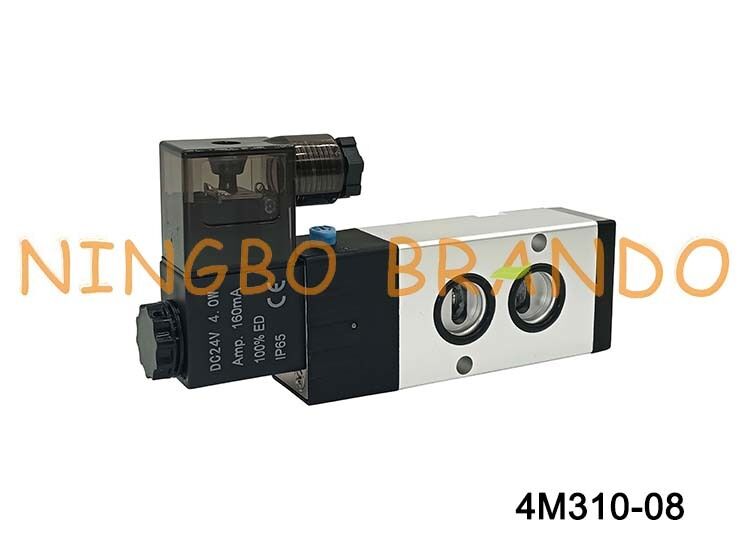

Airtac Type 4M310-08 NAMUR Solenoid Valve 5/2 way 4M Series

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	4M310-08

Payment & Shipping Terms:

Minimum Order Quantity:	300pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	In=Out=1/4''	Pressure Range:	0.15 To 0.8MPa (21 To 114PSI)
Body Material:	Aluminum Alloy	Function:	5 Way 2 Position
Max Pressure Resistance:	1.5MPa (215PSI)	Max. Frequency:	5 Cycle / Second
Voltages:	220V AC, 110V AC, 24V AC, 24V DC, 12V DC
Highlight:	4M NAMUR Series Solenoid Valve , Airtac 4M310-08 NAMUR Solenoid Valve , AIRTAC 4M310-08 SINGLE SOLENOID VALVE

Airtac Type 4M310-08 NAMUR Solenoid Valve 5/2 way 4M Series

A NAMUR solenoid valve is directly mounted to pneumatic actuator inlet / outlet ports.

The function of a NAMUR solenoid valve is to control media flow: the valve itself is controlled by an electric solenoid, which opens or closes the valve, by controlling the amount of air thru a pilot to the pneumatic actuator. The solenoid and actuator work in tandem to control flow speed, flow amount, and flow direction. Likewise, the valve is operated in either the normally closed, or normally open position.

Solenoid valves are available in several configurations, including 3 way and 4 way. They are commonly applied for operating double acting rack and pinion actuators.

Technical Data of 4M Series Namur Solenoid Valve:

Model	4M110-M5	4M110-06	4M210-06	4M210-08	4M310-08	4M310-10
	4M120-M5	4M120-06	4M220-06	4M220-08	4M320-08	4M320-10
Fluid	Air (to be filtered by 40 μ m filter element)
Acting	Internal Pilot
Port Size	In=Out=M5	In=Out=1/8''	In=Out=1/8''	In=1/4'' Out=1/8''	In=Out=1/4''	In=3/8'' Out=1/4''
Orifice Size	10.2mm² (Cv=0.6)		17.0mm² (Cv=1.0)		28.0mm² (Cv=1.65)
Valve Type	5 Port 2 Position
Operating Pressure	0.15~0.8MPa (21~114psi)
Proof Pressure	1.2MPa (175psi)
Temperature	-20~70 ℃
Body Material	Aluminum Alloy
Max. Frequency	5 cycle / sec				4 cycle / sec
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Dimension of 4M310-08 Namur Solenoid Valve:

Airtac Type 4M310-08 NAMUR Solenoid Valve 5/2 way 4M Series 0

Production Video of Pneumatic Solenoid Valves:

More Pneumatic Products for you to choose:

2/2 Way 3/2 Way 5/2 Way, Single Solenoid

5/2 Way, Double Solenoid 5/3 Way, Double Solenoid Pneumatic Hose Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
