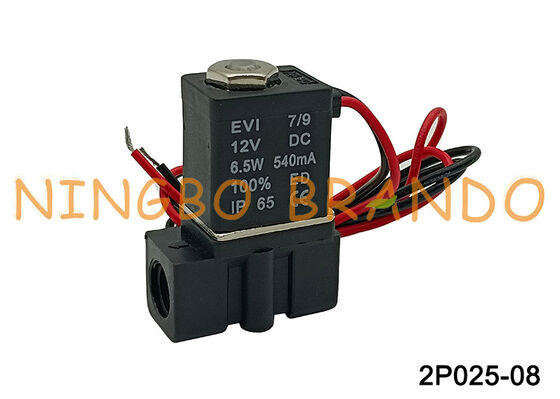

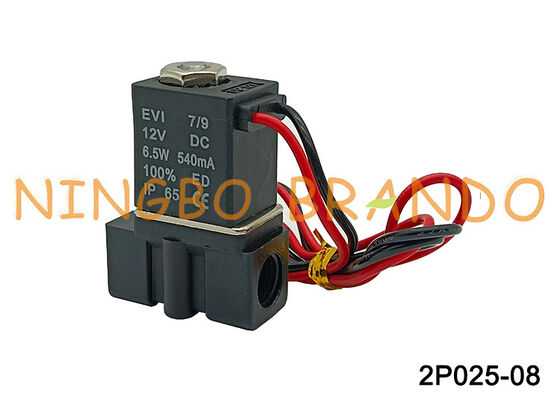

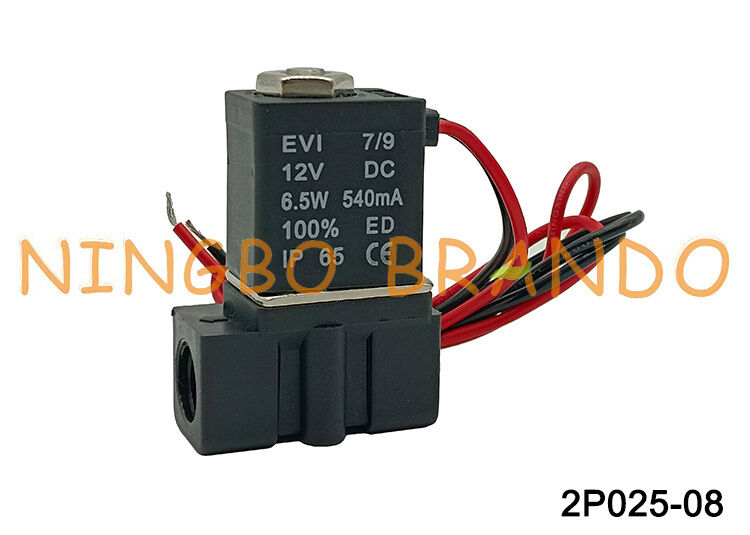

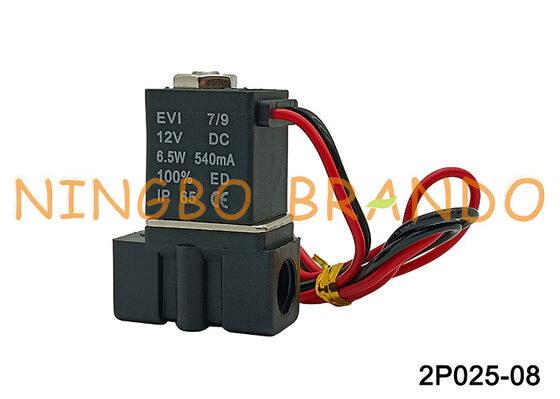

Name: 2P0250-08 2 Way Solenoid Valve 1/4'' Plastic Pneumatic Solenoid Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 2P025-08
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Solenoid Valve

2P0250-08 2 Way Solenoid Valve 1/4'' Plastic Pneumatic Solenoid Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	2P025-08

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	1/4''	Orifice Size:	2.5mm
Pressure Range:	0 To 1.0MPa (0 To 145PSI)	Max Pressure Resistance:	1.5MPa (215PSI)
Body Material:	Plastic	Function:	2 Way, Normally Closed (NC)
Voltage:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC	Action:	Direct Acting
Seal Material:	NBR	Min. Action Time:	0.05 Second And Below
Highlight:	2p025-08 Plastic Pneumatic Direct Acting Solenoid Valve , Fluid Control Valve Solenoid 2P025-08 , 2p025-08 Plastic Airtac Solenoid Valve

2P0250-08 2 Way Solenoid Valve 1/4'' Plastic Pneumatic Solenoid Valve

Product Features:

1. Safety, applicability, lightweight form factor.
2. For remote electric control fluid conduit in the valve opening and closing.
3. Please note that the gas flow direction and the takeover tooth type is correct installation.
4. With solenoid operated for control appropriate flow and direction, provide great performance.
5. Great body for a long lifespan, perfect for electrically driven pneumatic power control.

Technical Data of 2P Series Pneumatic Solenoid Valves:

Model No	2P025-06	2P025-08
Fluids	Air, Water, Oil, Gas
Action	Direct Acting
Type	2 Way, Normally Closed (NC)
Cv value	0.23
Port size	1/8''	1/4''
Viscosity limit	Under 20Cst
Pressure range	0~1.0Mpa (0~145psi)
Proof pressure	1.5Mpa (215psi)
Material body	Plastic Nylon
Seal Material	NBR
Min. activating time sec	0.05sec and below

Dimension of 2P Pneumatic Solenoid Valve:

2P0250-08 2 Way Solenoid Valve 1/4'' Plastic Pneumatic Solenoid Valve 0

More Pneumatic Products for you to choose:

2P0250-08 2 Way Solenoid Valve 1/4'' Plastic Pneumatic Solenoid Valve 1

2/2 Way 3/2 Way 5/2 Way, Single Solenoid

2P0250-08 2 Way Solenoid Valve 1/4'' Plastic Pneumatic Solenoid Valve 4

5/2 Way, Double Solenoid 5/3 Way, Double Solenoid Pneumatic Hose Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
