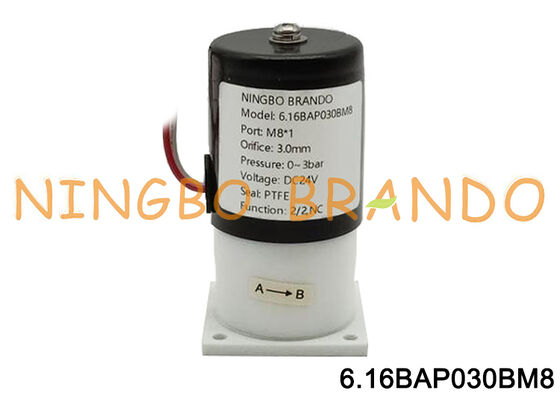

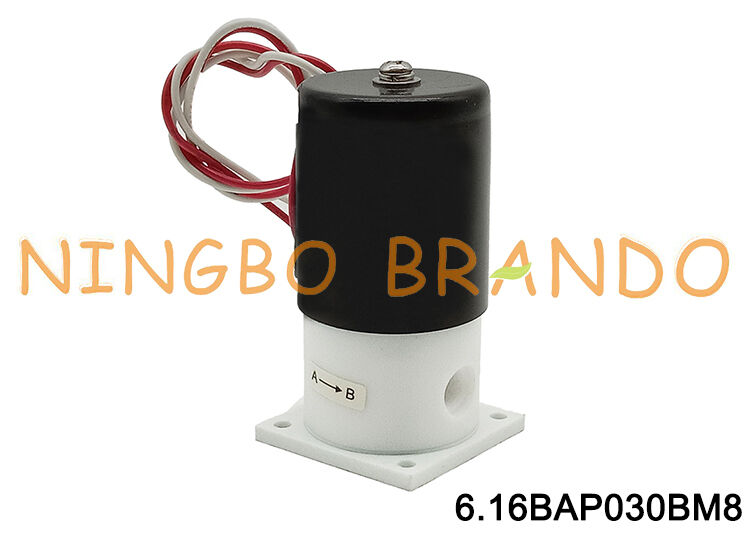

Name: M8 Anti-corrosive Isolation PTFE Solenoid Valve DC24V AC220V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 6.16BAP030BM8
Price: 25.00 USD
Availability: InStock

Home Products Plastic Solenoid Valve

M8 Anti-corrosive Isolation PTFE Solenoid Valve DC24V AC220V

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	6.16BAP030BM8

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	Negotiation
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	Negotiation
Payment Terms:	T/T,PayPal,Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Function:	2 Way, Normally Closed	Port Size:	M8
Orifice Size:	3mm	Valve Body Material:	PTFE
Seal Material:	PTFE	Working Pressure Range:	0 To 0.3 MPa
Voltages:	12VDC, 24VDC, 110VAC, 220VAC
Highlight:	M8 PTFE Solenoid Valve , M8 Anti-corrosive PTFE Solenoid Valve , Anti Corrosion Solenoid Valve 24V

M8 Anti-corrosive Isolation PTFE Solenoid Valve DC24V AC220V

Product Features:

Our isolation solenoid valves offer instrument designers a completely inert, non-metallic fluid path. The valves use a flexible diaphragm to isolate the solenoid actuation mechanism from the fluid path. Isolation Valves offer low internal volumes, precise flow control and excellent ease of installation making them particularly suitable for use in highly aggressive and / or high purity fluid applications such as analytical chemistry and clinical diagnostics. The highly inert fluid path is especially useful in liquid chromatography, genomics and protein synthesis applications. The high flow factor makes these valves well suited to environmental and water analysis applications.

Technical Data of Isolation Solenoid Valve:

Model No.	Port size	Orifice (mm)	Cv	Mini Pressure	Max Pressure		Seal Material
					AC(6VA)	DC(10W)
6.16BAP030BM8	M8x1	3.0	0.1	0.0MPa	0.3MPa	0.3MPa	PTFE
6.16BAP030B01	1/8''	3.0	0.1	0.0MPa	0.3MPa	0.3MPa
6.16BAP030B02	1/4''	3.0	0.1	0.0MPa	0.15MPa	0.15MPa
					AC(24VA)	DC(13W)
6.16BAP060B02	1/4''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B03	3/8''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B04	1/2''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B06	3/4''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa

Main Dimension of Isolation Solenoid Valve:

More PTFE () Body Solenoid Valves for you to choose:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Tag:

Contact Person: Mr. Brandon Bao

Tel: 86-13454729544

Fax: 86-574-83879820
