| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 616BA-30 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Function: | 2 Way, Normally Closed | Operation: | Direct Acting |
|---|---|---|---|
| Port Size: | 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'' | Orifice Size: | 3mm, 6mm |
| Voltages: | 12VDC, 24VDC, 110VAC, 220VAC | Fluids: | Corrosive Liquid, Acid And Alkali |
| Valve Body Material: | PTFE () | Seal Material: | PTFE () |
| Working Pressure Range: | 0 To 0.3 MPa | ||
| High Light: | PTFE Solenoid Valve,24v Isolation Solenoid Valve,Solenoid Valve For Medical |
||

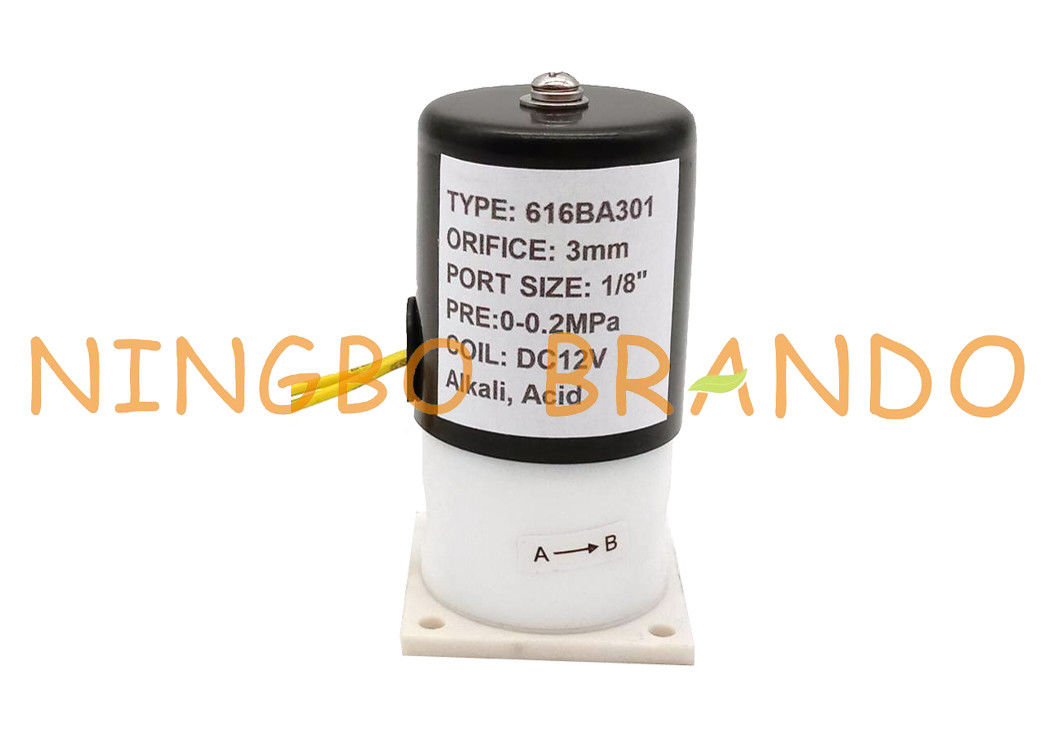

1/8'' PTFE Diaphragm Isolation Solenoid Valve For Medical 12V 24V
Product Features:
Our isolation solenoid valves offer instrument designers a completely inert, non-metallic fluid path. The valves use a flexible diaphragm to isolate the solenoid actuation mechanism from the fluid path. Isolation Valves offer low internal volumes, precise flow control and excellent ease of installation making them particularly suitable for use in highly aggressive and / or high purity fluid applications such as analytical chemistry and clinical diagnostics. The highly inert fluid path is especially useful in liquid chromatography, genomics and protein synthesis applications. The high flow factor makes these valves well suited to environmental and water analysis applications.
Technical Data of Isolation Solenoid Valve:
Main Dimension of Isolation Solenoid Valve:
 |
|
Brando Solenoid Valve Factory Production Video:
More PTFE () Body Solenoid Valves for you to choose:
|
|
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
