Name: M100 Diaphragm TKITM100N04 For SQP100 SQM100 3.5'' 4'' TURBO Pulse Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: M100
Price: 49.10 USD
Availability: InStock

Home Products Diaphragm Repair Kit

M100 Diaphragm TKITM100N04 For SQP100 SQM100 3.5'' 4'' TURBO Pulse Valve

Product Details:

Place of Origin:	China
Brand Name:	Ningbo BRANDO
Certification:	None
Model Number:	M100

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 working days
Payment Terms:	T/T,Western Union,PayPal
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:	Pulse Valve Diaphragm	Diaphragm Material:	NBR
Fitted Pulse Valve Port:	3.5'', 4''	Fitted Pulse Valve Model:	SQP100, SQM100

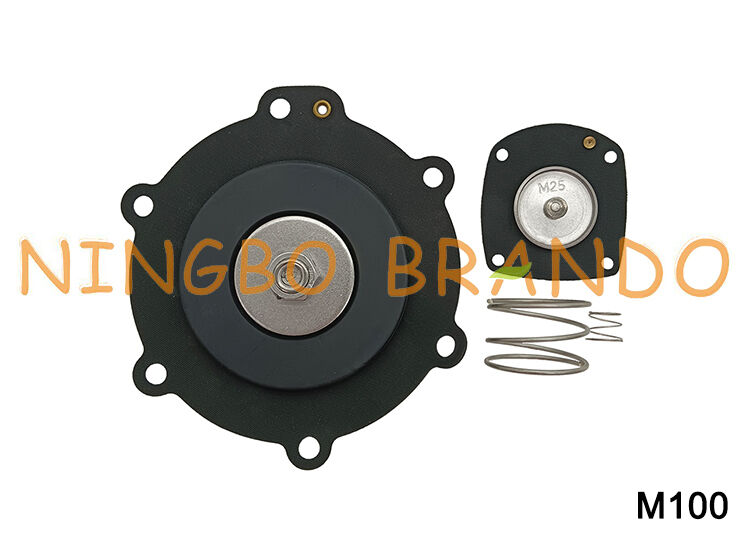

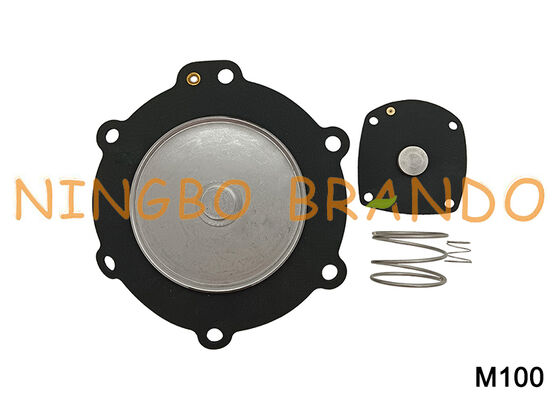

1 Set:	1pc M100 Diaphragm, 1pc M25 Diaphragm, 2pcs Springs
Highlight:	TURBO Membrane M100 , Turbo m100 diaphragm , M100 TKITM100N04 Diaphragm

M100 Diaphragm TKITM100N04 For SQP100 SQM100 3.5'' 4'' TURBO Pulse Valve

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Ordering Code of Diaphragm For Turbo Pulse Valve:

Diaphragm Model No	Pulse Valve Model No	Pulse Valve Port Size	Diaphragm Material
M25	FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25	3/4'', 1''	NBR (standard) FKM (optional)
M40+M25	FP40, FM40, DP40, DM40, EP40, EM40	1-1/2''
M45+M10	TI045P, TI045M	1-1/2''
M50+M25	FP50, FM50, FP55, FM55, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65	2'', 2-1/2''
M75+M25	FP65, FM65, SQP75, SQM75	2-1/2'', 3''
M100+M25	SQP100, SQM100	3-1/2'', 4''

M100 Dimension:

M100 Diaphragm TKITM100N04 For SQP100 SQM100 3.5'' 4'' TURBO Pulse Valve 0

Pictures of Pulse Valve Membrane Production:

More Turbo Type Pulse Jet Valve for you to choose:


Threaded Type	Submerged Type	Valve Diaphragm

Solenoid Coil	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
