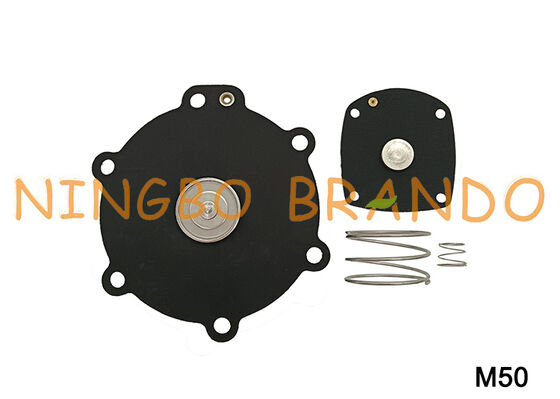

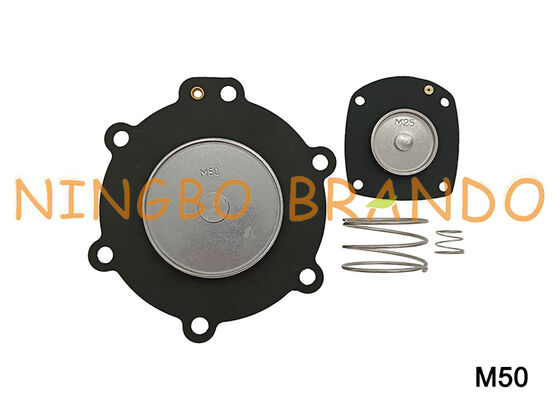

M50 2'' Turbo Diaphragm Repair Kit for FP55 SQP55 SQP65 Pulse Valve TKISM50

M50 2'' Turbo Diaphragm Repair Kit for FP55 SQP55 SQP65 Pulse Valve TKISM50

M50 Diaphragm (Membrane) for Turbo pulse valve FP50, FM50, FP55, FM55, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

Ordering Code of Diaphragm For Turbo Pulse Valve:

Dimension of M50 Diaphragm:

Video of M50 + M25 Diaphragm:

Pictures of Pulse Valve Membrane Production:

More Turbo Type Pulse Jet Valve for you to choose:

Threaded Type	Submerged Type	Valve Diaphragm
Solenoid Coil	Solenoid Armature	Pulse Controller
