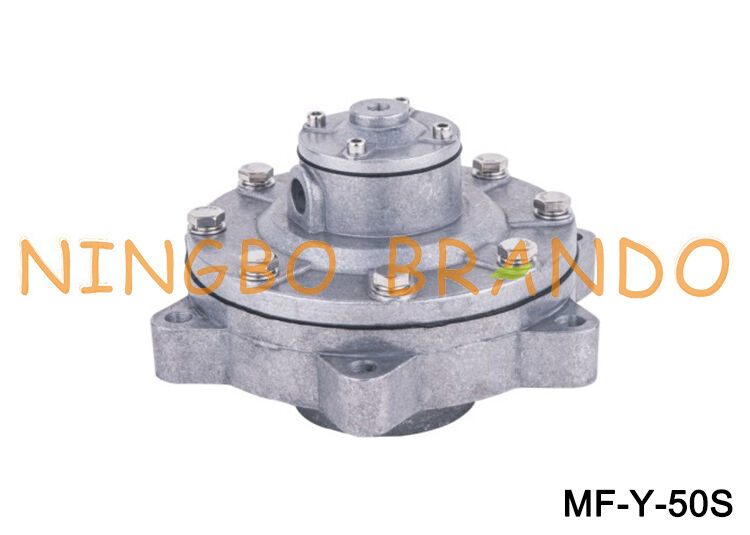

Name: SBFEC Type 2'' MF-Y-50S Embedded Type Pneumatic Remote Pilot Pulse Jet Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: MF-Y-50S
Price: 49.10 USD
Availability: InStock

Home Products Pulse Jet Valve

SBFEC Type 2'' MF-Y-50S Embedded Type Pneumatic Remote Pilot Pulse Jet Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	MF-Y-50S

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	BFEC Pulse Jet Valve	Valve Type:	Full Immersion
Port Size:	2''	Diaphragm Material:	NBR
Working Pressure Range::	0.1 To 0.8 MPa	Body Material:	Aluminum Alloy
Structure:	Embedded	Working Temperature:	-5 To +80℃
Highlight:	BFEC MF-Y-50s Diaphragm Valve , Submerged Pulse Jet Valve 2'' , BFEC MF-Y-50SS

SBFEC Type 2'' MF-Y-50S Embedded Type Pneumatic Remote Pilot Pulse Jet Valve

Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different designs of pulse jet valves:

1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type

Technical Data of SBFEC Type DMF Series Submerged Pulse Jet Valve:

Model number	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S
Port sizes	G1''	G1 1/2''	G2''	G2 1/2''	G3''	G4''
Membrane sizes (φ66 smaller)	φ96	φ112	φ160	φ188	φ202	φ255
CV values	30.53	53.47	71.47	150.85	186.66	313.09
Blowing area (m2)	8-10	12-16	18-28	27-38	37-65	70-90
Weight (kg)	0.75	1.2	2.35	3.2	4.05	5.65
Environment Temperature	-25℃ to +80℃
Relative Humidity	≤85%
Working Medium	Clean Air
Protection Class	IP65
Service Life	Over one million times
Voltage	DC24V, AC24V, AC110V, AC220V

Main Dimension:

SBFEC Type 2'' MF-Y-50S Embedded Type Pneumatic Remote Pilot Pulse Jet Valve 0

Related Products:


Fitting	Diaphragm	Remote Pilot Box	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
