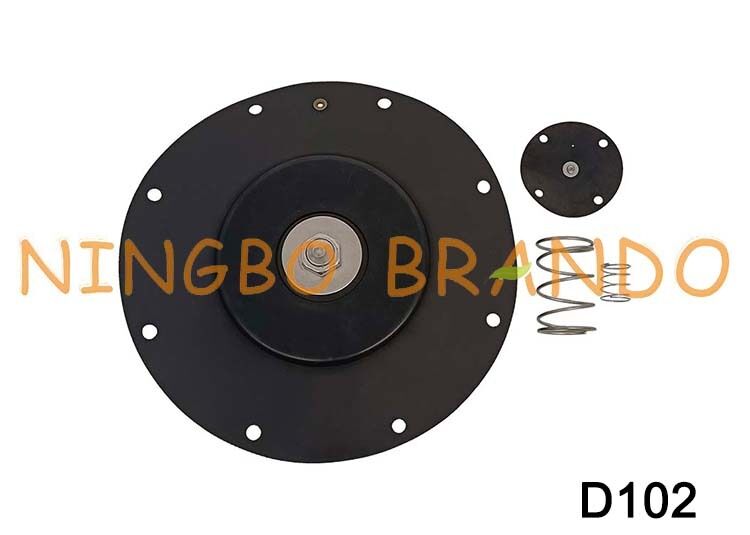

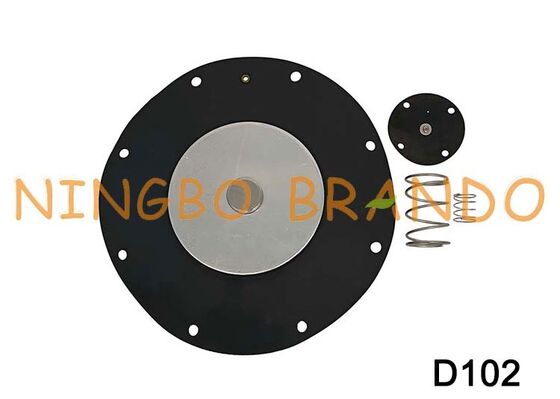

4'' DMF-Z-102S DMF-Y-102S SBFEC Solenoid Pulse Valve Diaphragm Repair Kits

4'' DMF-Z-102S DMF-Y-102S SBFEC Solenoid Pulse Valve Diaphragm Repair Kits

Diaphragm (Membrane) for 4'' BFEC pulse valve DMF-Z-102S, DMF-Y-102S; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse valves are the "switch" for compressed air in the dust clean blowing system of the pulse bag filter. It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve. Inside the pulse valve, the rubber diaphragm opens and closes to release the compressed air stored in the air header. At this time, the air enters the blowing pipe above the filter through the valve, and then enters the filter down to clean the filter bag.

Ordering Number of Diaphragm For SBFEC Pulse Valve:

Main Dimension of D102 Diaphragm For BFEC Pulse Valve:

Video of D102 Membrane For BFEC Pulse Valve:

Pictures of Pulse Valve Diaphragm Production:

More Related Products For you to choose:

Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type
Valve Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller
