Name: Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: RCA76T
Price: 49.10 USD
Availability: InStock

Home Products Pulse Jet Valve

Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	RCA76T

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	4-7 days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	165000 pieces per month

Contact Now

Detailed Product Description

Port Size:	3''	Series:	T
Pipe Connection:	Threaded	Valve Structure:	Right Angle Type
Body Material:	Aluminum Alloy	Diaphragm Material:	NBR, FKM
Workinｇ Pressure Range:	0.3 To 0.8 MPa
Highlight:	Pulse Jet Valve 3Inch , Remote Pulse Jet Valve RCA76T , Goyen Dust Collector Valve RCA76T

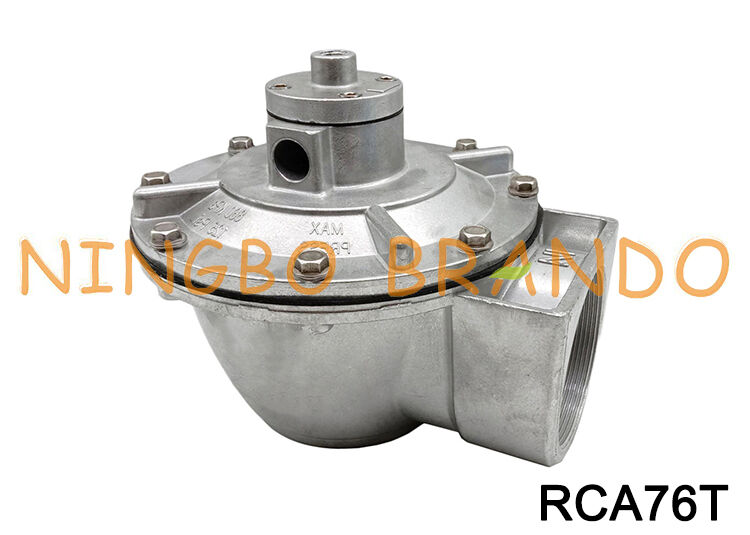

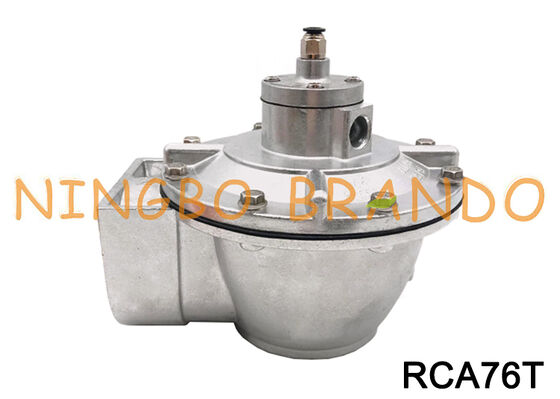

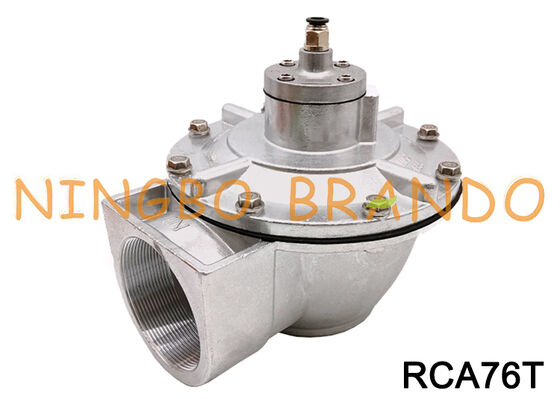

Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve

High performance pulse diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.

Suitable for Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters. The "T" series valves are available in 3/4", 1", 1.5",2", 2.5", 3" port sizes.

Dimension of RCA76T Pulse Jet Valve:

Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve 0

Technical Data of T Series Pulse Jet Valves:

Model NO	RCA15T	RCA20T	RCA25T	RCA35T	RC45T	RCA50T	RCA62T	RCA76T
Office Size (mm)	15	20	25	35	45	50	62	76
Port Size (Inch)	1/2''	3/4''	1''	1 1/2''	1 1/2''	2''	2 1/2''	3''
Diaphragm Number	1				2
Pilot Size	1/8'', 1/4''
Working pressure	0.3 to 0.8MPa
Fluids	Air
Diaphragm Material	NBR or FKM
Body Material	Aluminum Alloy
Valve Structure	Right Angle (Outlet is at 90° to Inlet)

Ordering Code of T Series Pulse Jet Valves:

Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve 2

More Goyen Type Pulse Jet Valves for you to choose:


T Series	DD Series	MM Series	FS Series

RCA Series	Solenoid Coils	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
