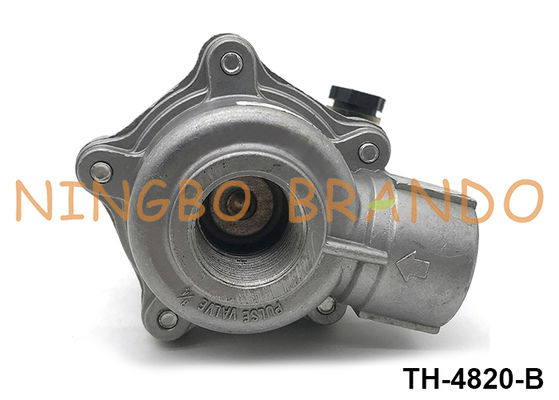

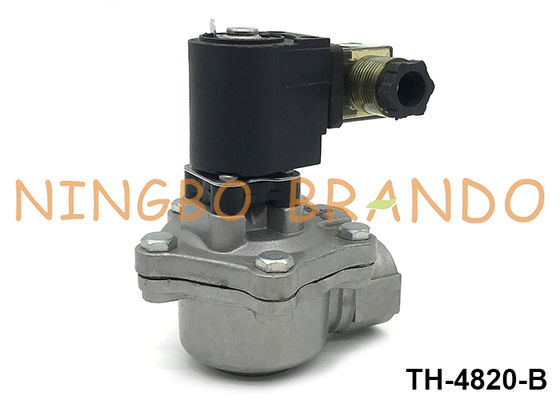

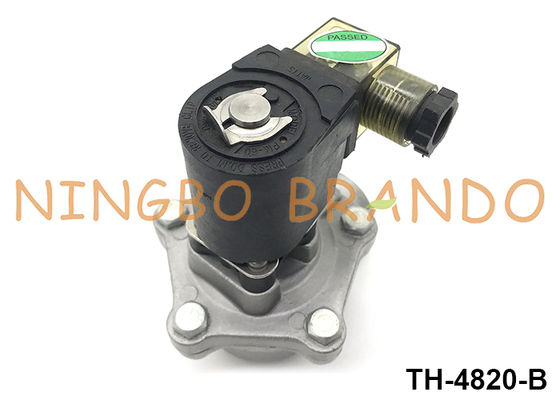

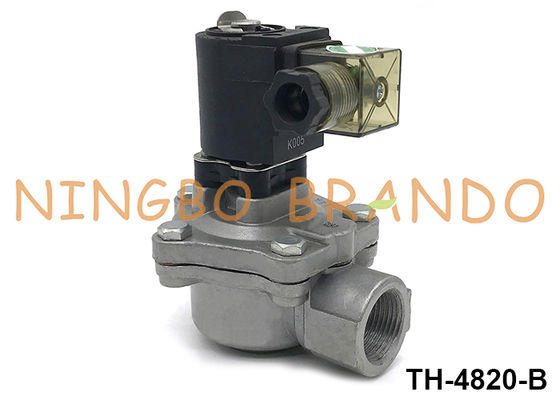

Name: TAEHA Type 3/4'' TH-4820-B Dust Collector Pulse Jet Valve 24V 110V 220V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: TH-4820-B
Price: 49.10 USD
Availability: InStock

Home Products Pulse Jet Valve

TAEHA Type 3/4'' TH-4820-B Dust Collector Pulse Jet Valve 24V 110V 220V

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	TH-4820-B

Payment & Shipping Terms:

Minimum Order Quantity:	8pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	about 4 to 7 working days after payment landed
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	50000pcs per month

Contact Now

Detailed Product Description

Product Name:	Pulse Valve	Port Size:	3/4''
Body Material:	Aluminum (diecast)	Diaphragm Material:	NBR
Working Pressure:	0.35 To 8.5 Bar	Voltage:	24VDC, 24VAC, 110VAC, 220VAC
Application:	Dust Collector
Highlight:	TAEHA Pulse Jet Valve , TH-4820-B Pulse Jet Valve , TAEHA TH-4820-B Diaphragm Valve

TAEHA Type 3/4'' TH-4820-B Dust Collector Pulse Jet Valve 24V 110V 220V

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

1. Threaded Type
2. Manifold Flat Mount Type
3. Dresser Nut Type
4. Straight Through Type
5. Flanged Type

Technical Data:

Integral Pilot Model	TH-4820-B	TH-4825-B	TH-4830-B	TH-4430-B	TH-4840-B	TH-4440-B	TH-4450-B	TH-4460-B	TH-4475-B
Remote Pilot Model	TH-5820-B	TH-5825-B	TH-5830-B	TH-5430-B	TH-5840-B	TH-5440-B	TH-5450-B	TH-5460-B	TH-5475-B
Port Size	3/4''	1''	1-1/4''	1-1/4''	1-1/2''	1-1/2''	2''	2-1/2''	3''
Pilot Size	1/4''
Diaphragm Number	1	1	1	2	1	2	2	2	2
Working pressure	0.35 to 8.5 bar
Diaphragm Material	NBR
Body Material	Aluminum (diecast)
Voltage	24VAC, 110VAC, 220VAC, 24VDC

TH-4820-B Dimension:

Our Production:

TAEHA Type 3/4'' TH-4820-B Dust Collector Pulse Jet Valve 24V 110V 220V 1

Related Products:


Solenoid Coil	Solenoid Armature	Diaphragm	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
