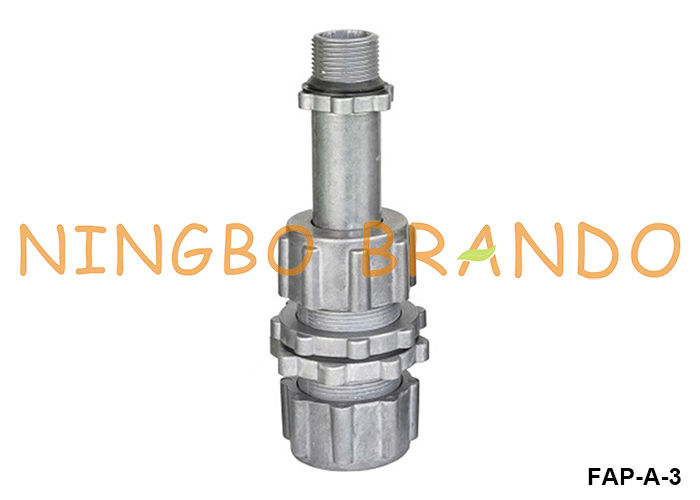

FAP-A-3 Pulse Valve Bulkhead Connector for Dust Collector Wall Pipe Connector

FAP-A-3 Bulkhead Connector

A pulse valve bulkhead connector is a specialized adapter that creates a secure, through-wall connection for the pneumatic or electrical components of a reverse pulse jet valve system, commonly used in industrial dust collectors. It acts as a sealed pass-through, simplifying the installation and maintenance of these cleaning valves by eliminating the need for welding and allowing for easy removal of the valve components from one side of the dust collector's housing.

Key Features
1) Various Sizes: available in multiple sizes (e.g., 3/4", 1", 1-1/2", 2'', 2-1/2'', 3'') to match different pulse valves and piping.
2) Material: often made from pressure die-casted aluminum or other robust materials suitable for industrial environments.
3) Sealing: come with specific seals (like NBR or FKM for different temperature ranges) to create a secure seal against the collector wall.

Model No	FAP-A-3-20	FAP-A-3-25	FAP-A-3-40	FAP-A-3-50
DN	20	25	40	50
L	198	202	252	266
L1	148		188	196
L2	30	40		44
D	48	50	55	64
ΦA	Φ27	Φ34	Φ48	Φ60
M	G3/4''	G1''	G1-1/2''	G2''
