TKISM010N02 1/2'' Diaphragm Repair Kit for Turbo TI010NM TI010NP Pulse Valve

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	M10

Payment & Shipping Terms:

Minimum Order Quantity:	20sets
Price:	Negotiation
Packaging Details:	Plastic Bag, Carton, Pallet
Delivery Time:	4 to 5 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	100000sets per month

Contact Now

Detailed Product Description

Product Name:	Pulse Valve Diaphragm	Ref No:	TKISM010N02
Diaphragm Material:	NBR (Standard), FKM (Optional)	1 Set:	1pc M45 Diaphragm, 1pc M10 Diaphragm, 2pcs Springs
Fitted Pulse Valve Model:	TI010NM TI010NP
Highlight:	TKISM010N02 Diaphragm Repair Kit , TI010NM Diaphragm Repair Kit , Turbo TKISM010N02 Membrane

TKISM010N02 1/2'' Diaphragm Repair Kit for Turbo TI010NM TI010NP Pulse Valve

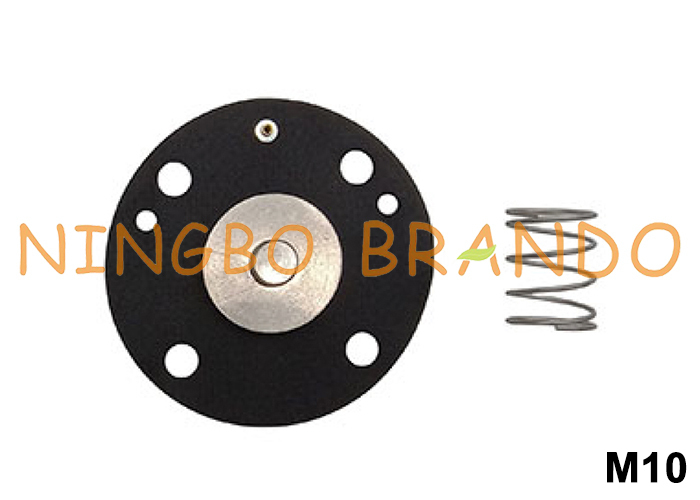

This M10 diaphragm is usded in TUBRO TI010NMand TI010NP pulse valves. The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Ordering Codes:

Diaphragm Model No	Pulse Valve Model No	Pulse Valve Port Size	Diaphragm Material
M10	TI010NM, TI010NP	1/2''	NBR (standard) FKM (optional)
M25	FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25	3/4'', 1''
M40+M25	FP40, FM40, DP40, DM40, EP40, EM40	1-1/2''
M45+M10	TD045NM, TD045NP, TF045NM, TF045NP, TI045P, TI045M	1-1/2''
M50+M25	FP50, FM50, FP55, FM55, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65	2'', 2-1/2''
M75+M25	FP65, FM65, SQP75, SQM75	2-1/2'', 3''
M100+M25	SQP100, SQM100	3-1/2'', 4''

M45 Dimension:

TKISM010N02 1/2'' Diaphragm Repair Kit for Turbo TI010NM TI010NP Pulse Valve 0

Our Production:

TKISM010N02 1/2'' Diaphragm Repair Kit for Turbo TI010NM TI010NP Pulse Valve 1

Related Products:


Solenoid Coil	Solenoid Armature	Pulse Valve	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
