Name: M45 TKITM45 Diaphragm For TURBO Pulse Valve Membrane Kit
Brand: Ningbo Brando Hardware Co., Ltd
SKU: M45
Price: 49.10 USD
Availability: InStock

Home Products Diaphragm Repair Kit

M45 TKITM45 Diaphragm For TURBO Pulse Valve Membrane Kit

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	M45

Payment & Shipping Terms:

Minimum Order Quantity:	20sets
Price:	Negotiation
Packaging Details:	Plastic Bag, Carton, Pallet
Delivery Time:	4 to 5 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	100000sets per month

Contact Now

Detailed Product Description

Product Name:	Pulse Valve Diaphragm	Ref No:	TKITM45, TKISM045N, TKISM045V, TKISM045T

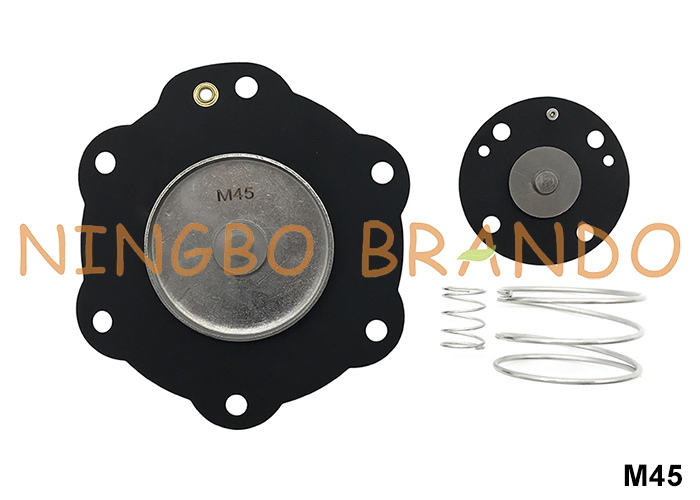

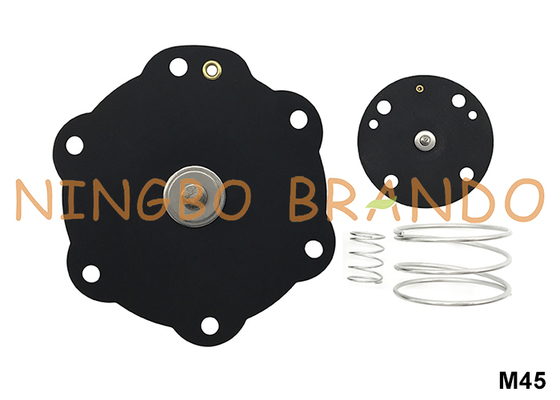

Diaphragm Material:	NBR (Standard), FKM (Optional)	1 Set:	1pc M45 Diaphragm, 1pc M10 Diaphragm, 2pcs Springs
Fitted Pulse Valve Model:	TI045P, TI045M
Highlight:	TURBO Diaphragm M45 , TURBO Membrane M45 , TURBO Pulse Valve Diaphragm

M45 TKITM45 Diaphragm For TURBO Pulse Valve

This M45 diaphragm is usded in TUBRO TI045P and TI045M pulse valves. The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Ordering Codes:

Diaphragm Model No	Pulse Valve Model No	Pulse Valve Port Size	Diaphragm Material
M25	FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25	3/4'', 1''	NBR (standard) FKM (optional)
M40+M25	FP40, FM40, DP40, DM40, EP40, EM40	1-1/2''
M45+M10	TI045P, TI045M	1-1/2''
M50+M25	FP50, FM50, FP55, FM55, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65	2'', 2-1/2''
M75+M25	FP65, FM65, SQP75, SQM75	2-1/2'', 3''
M100+M25	SQP100, SQM100	3-1/2'', 4''

M45 Dimension:

M45 TKITM45 Diaphragm For TURBO Pulse Valve Membrane Kit 0

Our Production:

M45 TKITM45 Diaphragm For TURBO Pulse Valve Membrane Kit 1

Related Products:


Solenoid Coil	Solenoid Armature	Pulse Valve	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
