Name: 4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 4A210-08
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Solenoid Valve

4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	4A210-08

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiation
Packaging Details:	Individual box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Valve Type:	5 Way 2 Position	Port Size:	In=Out=1/8''
Pressure Range:	0.15 To 0.8MPa (21 To 114PSI)	Max Pressure Resistance:	1.5MPa (215PSI)
Body Material:	Aluminum Alloy	4A200 Series:	4A210-06, 4A210-08, 4A220-06, 4A220-08, 4A230C-06, 4A230C-08, 4A230E-06, 4A230E-08, 4A230P-06, 4A230P-08
Max Frequency:	5 Cycle/sec	Acting:	Exterior Control
Highlight:	4A210-08 Pneumatic Air Pilot Valve , 1/4'' Pneumatic Air Pilot Valve , AirTac Valve 4A210-08

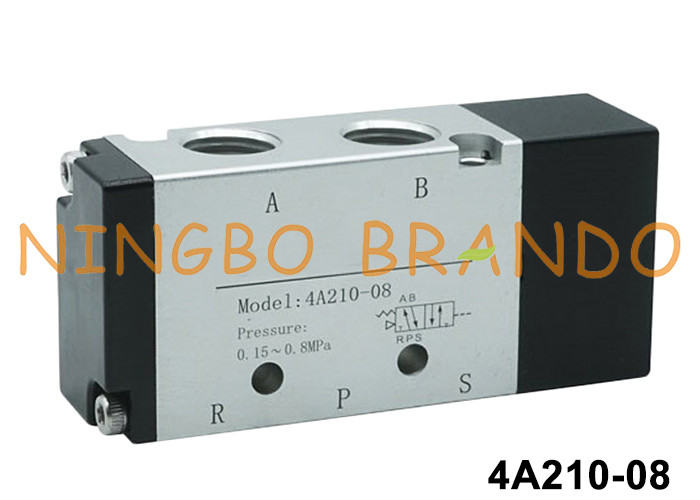

4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body

4A air pilot solenoid valve is a compact, durable, and high-flow capacity component designed for easy integration and maintenance in pneumatic systems. It features multiple mounting options, various port sizes, and operates within a broad temperature and pressure range with low power consumption.

Data of 4A200 Series Pneumatic Control Valves:

Model	4A210-06 4A220-06	4A230C-06 4A230E-06 4A230P-06	4A210-08 4A220-08	4A230C-08 4A230E-08 4A230P-08
Fluid	Air (to be filtered by 40 μ m filter element)
Acting	Exterior Control
Port Size	In=Out=Exhaust=1/8''		In=Out=1/4'', Exhaust=1/8''
Orifice Size	25.00 mm2 (Cv=0.78)	18.00 mm2 (Cv=0.67)	30.00 mm2 (Cv=0.89)	18.00 mm2 (Cv=0.67)
Valve Type	5 way 2 position	5 way 3 position	5 way 2 position	5 way 3 position
Working Pressure	0.15~0.8MPa (21~114psi)
Max. Pressure Resistance	1.5MPa (215psi)
Temperature	5~50 ℃
Material of Body	Aluminum Alloy
Max. frequency	5 cycle/sec

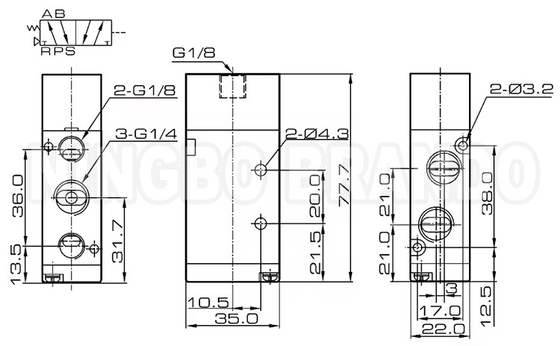

Dimension of 4A210-08 Pneumatic Air Pilot Valve:

4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body 0

Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body 1

Manifold Silencer Pneumatic Hose Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
