Name: 4A120-06 Airtac Type Pneumatic Air Pilot Valve 5/2 Way Double Control
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 4A120-06
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Solenoid Valve

4A120-06 Airtac Type Pneumatic Air Pilot Valve 5/2 Way Double Control

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	4A120-06

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiation
Packaging Details:	Individual box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Valve Type:	5 Way 2 Position	Port Size:	In=Out=1/8''
Pressure Range:	0.15 To 0.8MPa (21 To 114PSI)	Max Pressure Resistance:	1.5MPa (215PSI)
Body Material:	Aluminum Alloy	4A100 Series:	4A110-M5, 4A110-06, 4A120-M5, 4A120-06, 4A130C-M5, 4A130C-06, 4A130E-M5, 4A130E-06, 4A130P-M5, 4A130P-06
Max Frequency:	5 Cycle/sec	Acting:	Exterior Control
Highlight:	4A120-06 Pneumatic Air Pilot Valve , Airtac Pneumatic Air Pilot Valve , AirTac 4A120-06 Air Pilot Valve

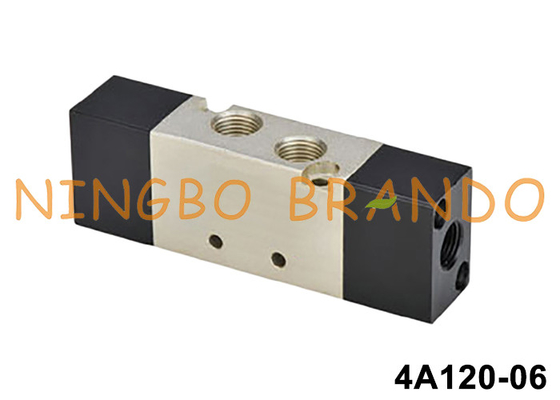

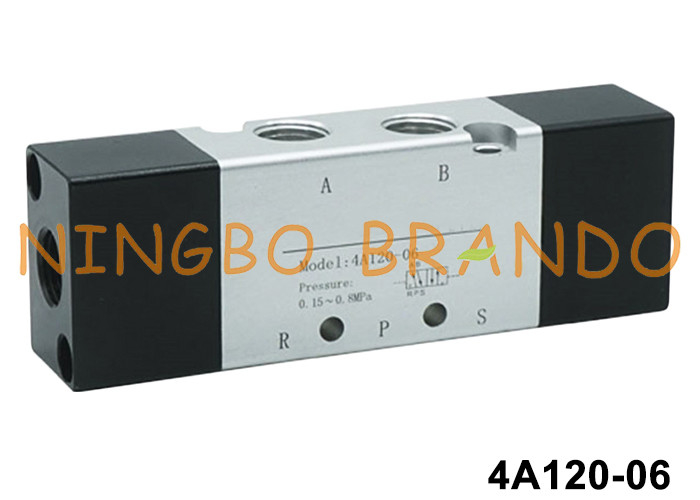

4A120-06 Airtac Type Pneumatic Air Pilot Valve 5/2 Way Double Control

4A air-operating solenoid valve is a compact, durable, and high-flow capacity component designed for easy integration and maintenance in pneumatic systems. It features multiple mounting options, various port sizes, and operates within a broad temperature and pressure range with low power consumption.

Pilot operated pneumatic valves are available as a 3 or 5-way valve configuration with G1/8'', G1/4'', G3/8'' or G1/2'' threaded ports.

Data of 4A100 Series Pneumatic Control Valves:

Model	4A110-M5 4A120-M5	4A130C-M5 4A130E-M5 4A130P-M5	4A110-06 4A120-06	4A130C-06 4A130E-06 4A130P-06
Fluid	Air (to be filtered by 40 μ m filter element)
Acting	Exterior Control
Port Size	In=Out=M5		In=Out=1/8''
Orifice Size	5.5 mm2 (Cv=0.31)	5.0 mm2 (Cv=0.28)	12.00 mm2 (Cv=0.67)	9.00 mm2 (Cv=0.50)
Valve Type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Operating Pressure	0.15~0.8MPa (21~114psi)
Proof Pressure	1.5MPa (215psi)
Temperature ℃	-20~70
Material of Body	Aluminum alloy
Max. frequency	5 cycle/sec	3 cycle/sec	5 cycle/sec	3 cycle/sec

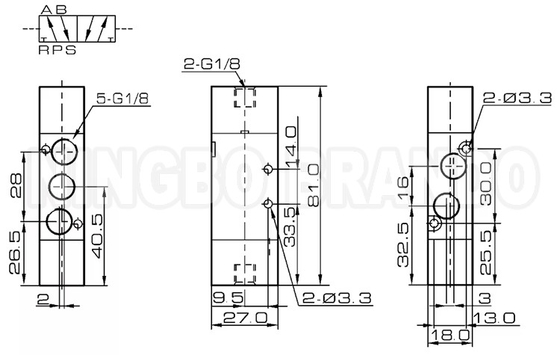

Dimension of 4A120-06 Pneumatic Air Pilot Valve:

4A120-06 Airtac Type Pneumatic Air Pilot Valve 5/2 Way Double Control 0

Production Video of Pneumatic Solenoid Valve:

More Pneumatic Products for you to choose:

4A120-06 Airtac Type Pneumatic Air Pilot Valve 5/2 Way Double Control 1

Manifold Silencer Pneumatic Hose Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Tag:

Contact Person: Mr. Brandon Bao

Tel: 86-13454729544

Fax: 86-574-83879820
