AirTac Type 4A110-06 1/8'' Pneumatic Air Pilot Valve 5/2 Way NC

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	4A110-06

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiation
Packaging Details:	Individual box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Valve Type:	5 Way 2 Position	Port Size:	In=Out=1/8''
Pressure Range:	0.15 To 0.8MPa (21 To 114PSI)	Max Pressure Resistance:	1.5MPa (215PSI)
Body Material:	Aluminum Alloy	Max Frequency:	5 Cycle/sec
Acting:	Exterior Control
Highlight:	AirTac Type Pneumatic Air Pilot Valve , 4A110-06 Pneumatic Air Pilot Valve , 4A110-06 Solenoid Valve

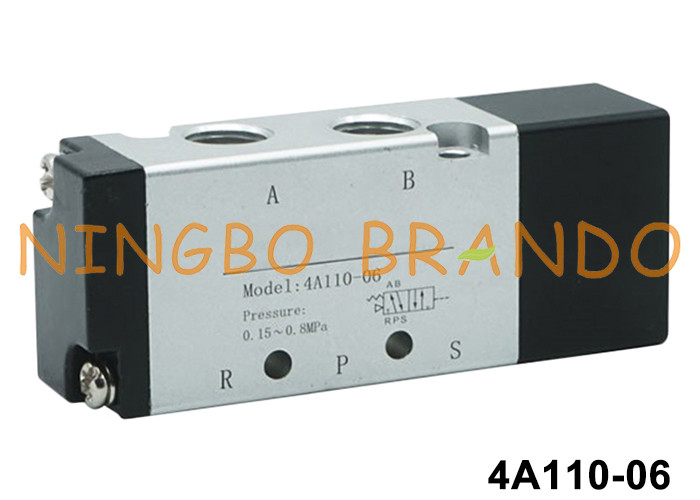

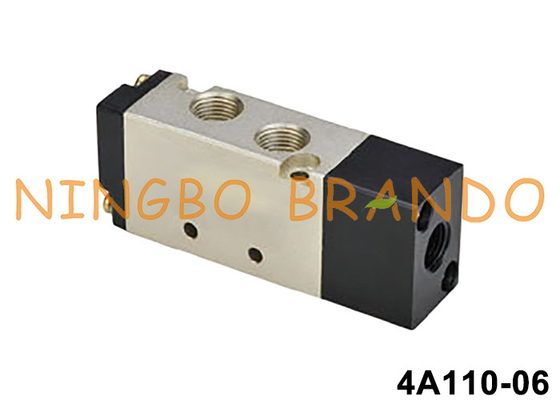

AirTac Type 4A110-06 1/8'' Pneumatic Air Pilot Valve 5/2 Way NC

Air piloted valves are operated with pneumatic pressure, and typically by the output of other pneumatic valves. They are configured as 2 and 3-port types to control pressurized liquids and gases such as water and chemicals, or as 2, 3 and 4-way types controlling compressed air (or vacuum) in industrial automation applications.

Technical Data of 4A100 Series Pneumatic Air Pilot Valve:

Model	4A110-M5	4A120-M5	4A130C-M5 4A130E-M5 4A130P-M5	4A110-06	4A120-06	4A130C-06 4A130E-06 4A130P-06
Fluid	Air (to be filtered by 40 μm filter element)
Acting	exterior control
Port Size	in=out=M5			in=out=1/8''
Orifice Size	4A110-06, 4A120-06: 17.0mm² (Cv=0.6) 4A130C-06: 8.6mm² (Cv=0.51)
Vlave Type	5 way 2 position		5 way 3 postion	5 way 2 position		5 way 3 position
Operating Pressure	0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure	1.2MPa (175psi)
Temperature	-20 to +70℃
Body Material	Aluminum Alloy
Max Frequency	5 cycle/sec		3 cycle/sec	5 cycle/sec		3 cycle/sec

Dimension of 4A110-06 Pneumatic Air Pilot Valve:

AirTac Type 4A110-06 1/8'' Pneumatic Air Pilot Valve 5/2 Way NC 0

Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valves	3/2 Way Pneumatic Valves	5/2 Way Pneumatic Valves	5/3 Way Pneumatic Valves

Namur Solenoid Valves	Air Pilot Valves	Pneumatic Cylinders	Silencers and Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
