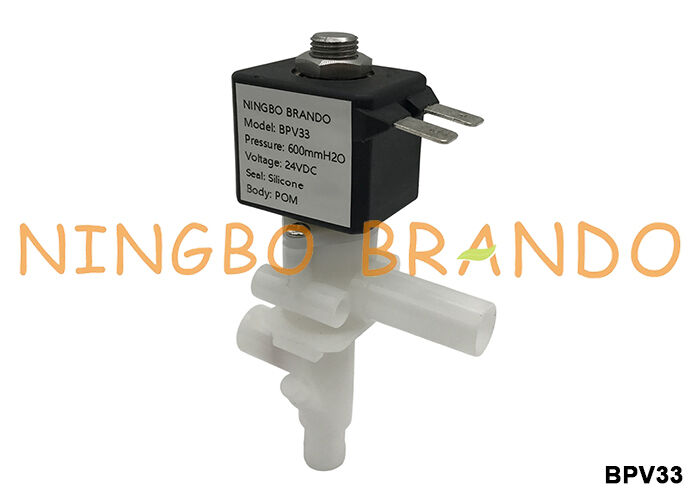

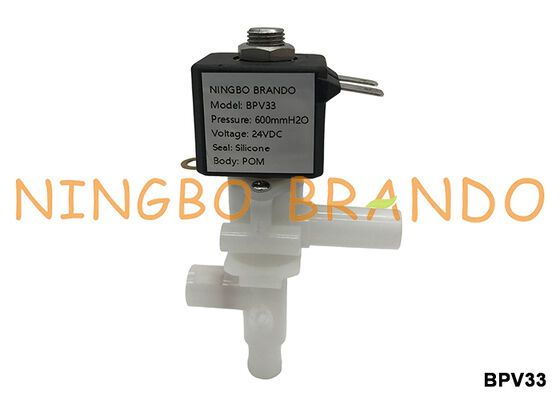

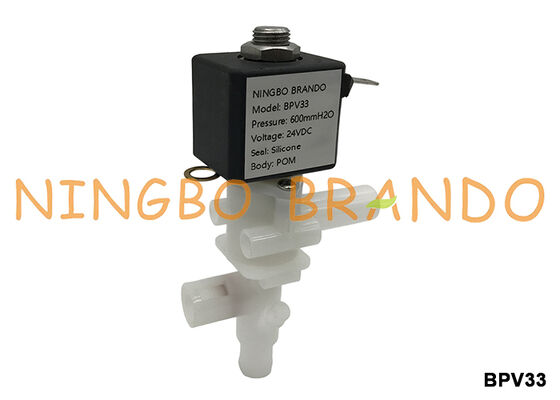

Name: Solenoid Valve for Coffee Beverage Vending Machine Parts 220V 110V 24V 12V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: BPV33
Price: 25.00 USD
Availability: InStock

Home Products Plastic Solenoid Valve

Solenoid Valve for Coffee Beverage Vending Machine Parts 220V 110V 24V 12V

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	BPV33

Payment & Shipping Terms:

Minimum Order Quantity:	300pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:	Solenoid Valve	Inlet Size:	11.8mm OD
Outlet Size:	11.2mm Barb	Body Material:	POM
Seal Material:	Silicone	Max Working Pressure:	600mmH2O (0.06 Bar)
Voltage:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC	Application:	Vending Machine
Highlight:	Vending Machine Solenoid Valve , Solenoid Valve for Vending Machine , Vending Machine Parts

Solenoid Valve for Vending Machine

BPV33 solenoid valve is popularly used in vending machines, designed to dispense hot or cold water and other beverages at low pressure, distributing directly from a tank or a boiler on the dispenser machine. Also, it is equipped with a vent tube, which allows the valve to have a fixed or adjustable flow and allows the valve to drain completely when it is shut off.

Technical Data:

Model No	Inlet	Outlet	Max. Working Pressure	Body	Seal	Working Medium	Voltage
BPV33	11.8mm OD	11.2mm barb	600mmH2O (0.06 bar)	POM	Silicone	Water Coffee Beverage Drink Milk Tea	12VDC 24VDC 24VAC 110VAC 220VAC

Our Production:

Solenoid Valve for Coffee Beverage Vending Machine Parts 220V 110V 24V 12V

More Solenoid Valves:


Brass Solenoid Valve	Stainless Steel Solenoid Valve	Plastic Solenoid Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
