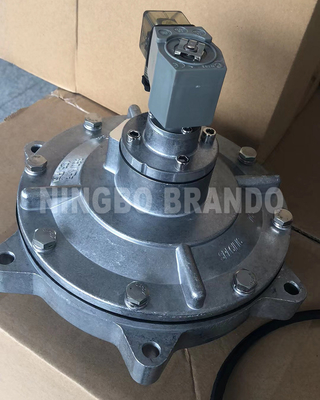

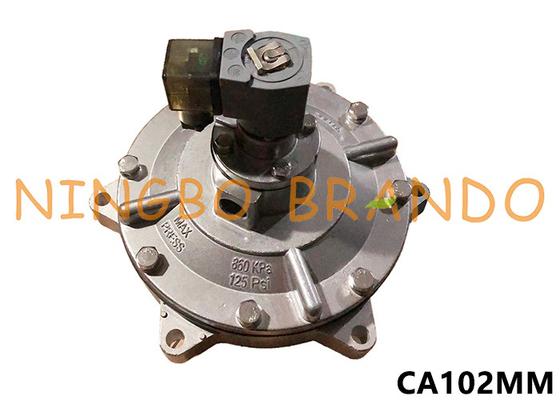

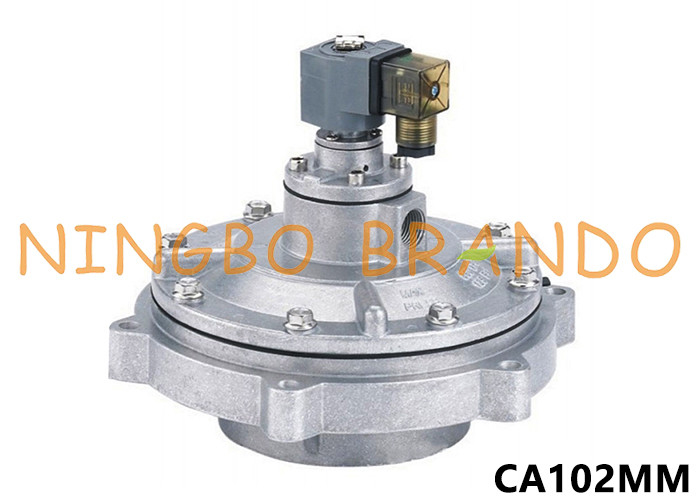

CA102MM 4'' Full Immersion Pulse Jet Valve For Bag Filter 24V DC 220V AC

CA102MM 4'' Full Immersion Pulse Jet Valve For Bag Filter 24V DC 220V AC

The full immersion manifold flat mount valves deliver the most powerful air pulse in square tank systems. These diaphragm valves are designed for dust collectors and baghouses with reverse pulse jet filter cleaning systems. Pulse valves (also called diaphragm valves) are the “switch” for compressed air in the dust clean blowing system of the pulse bag filter. It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve. Inside the pulse valve, the rubber diaphragm opens and closes to release the compressed air stored in the air header. At this time, the air enters the blowing pipe above the filter through the valve, and then enters the filter down to clean the filter bag.

Technical Data of MM Series Pulse Jet Valves:

Ordering Code of MM Series Pulse Jet Valve:

Main Dimension of CA102MM Pulse Jet Valve:

More Goyen Type Pulse Valves for you to choose:

T Series	DD Series	FS Series	MM Series
RCA Series	Solenoid Coil	Solenoid Armature	Diaphragm

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
