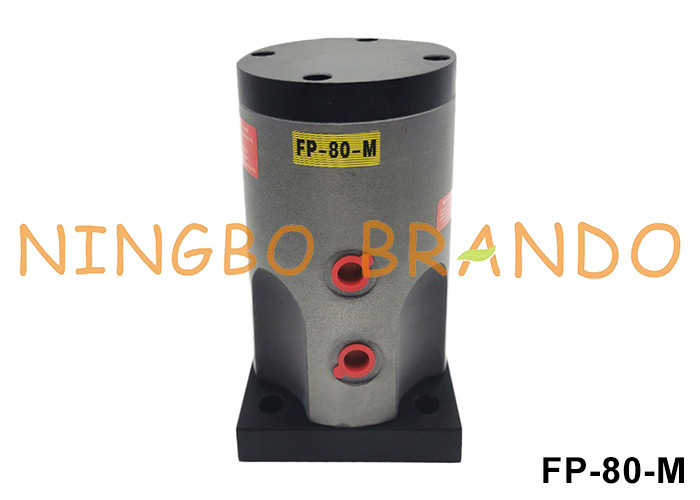

Name: FP-80-M FP Series Piston Pneumatic Vibrator for Industrial Bin Hopper
Brand: Ningbo Brando Hardware Co., Ltd
SKU: FP-80-M
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Hose Fittings

FP-80-M FP Series Piston Pneumatic Vibrator for Industrial Bin Hopper

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	FP-80-M

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	5 to 10 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Product Name:

Pneumatic Piston Vibrator

Port Size:

G3/8''

Frequency:

1000 To 2500 VPM

Centrifugal Force:

1080 To 2400 N

Highlight:

Pneumatic Vibrator FP-80-M

Piston Pneumatic Vibrator

Industrial Pneumatic Vibrator

FP-80-M Pneumatic Piston Vibrator

FP Series pneumatic piston vibrators are quiet, lightweight, and adjustable. These vibrators are stud-mounted, and include an internal start spring to ensure self-starting when used with a self-exhausting valve. When used with a free-flow silencer, noise level can be reduced by up to 50%, and fine adjustments to amplitude can be made. There are 16 models available, with forces to over 900 pounds. Force and frequency are variable, controlled by adjusting the air pressure. The power-to-weight ratio of these vibrators makes them particularly efficient in feeding applications.

Technical Data:

Model	Frequency VPM (x1000)			Centrifugal Force						Air Consumption / minute
	2 bar	4 bar	6 bar	2 bar	29 psi	4 bar	58 psi	6 bar	87 psi	2 bar	29 psi	4 bar	58 psi	6 bar	87 psi
	29 psi	58 psi	87 psi	N	LBS	N	LBS	N	LBS	Litr.	CF	Litr.	CF	Litr.	CF
FP-12-S	6.2	7.8	9.3	34	7.7	70	16	92	21	0.8	0.03	7.5	0.26	25	0.88
FP-12-M	5	6	6.7	34	7.7	58	13	74	17	0.5	0.02	4	0.14	19	0.67
FP-12-L	4	4.8	5.4	32	7.2	58	13	81	18	1	0.04	3	0.11	20	0.71
FP-18-S	5	6.4	7.7	66	15	134	30	187	42	5	0.18	33	1.16	57	2
FP-18-M	4	5	5.9	68	15	134	30	188	42	4	0.14	28	1	52	1.84
FP-18-L	3.1	4	4.6	64	14	150	34	206	46	5	0.18	23	0.81	46	1.62
FP-25-S	3.6	4.3	5.5	126	28	270	61	416	94	13	0.46	54	1.91	93	3.28
FP-25-M	3	3.8	4.2	142	32	364	82	504	113	23	0.81	50	1.76	87	3.07
FP-25-L	2.4	3.1	3.7	186	42	392	88	594	134	18	0.64	62	2.19	93	3.28
FP-35-S	3.8	4.7	5.8	294	66	668	150	1038	234	23	0.81	101	3.56	162	5.72
FP-35-M	3	4	4.6	248	56	778	175	1080	243	24	0.85	83	2.93	141	4.98
FP-35-L	2.4	3.1	3.6	282	63	680	153	1066	240	38	1.34	89	3.14	135	4.77
FP-50-M	1.8	2.3	2.8	490	110	970	218	1660	360	48	1.67	100	3.48	190	6.61
FP-65-M	1.9	2.4	2.7	610	137	1400	315	2170	489	90	3.13	160	5.57	270	9.39
FP-95-M	1.8	2.4	2.8	1500	338	2620	590	4270	962	170	5.91	320	11.13	450	15.65

Main Dimension:

Model	A	B	C	D	E	F
FP-12-S	71mm	31mm	34mm	M8	G1/8"	G1/8"
FP-12-M	81mm	31mm	34mm	M8	G1/8"	G1/8"
FP-12-L	94mm	31mm	34mm	M8	G1/8"	G1/8"
FP-18-S	81mm	40mm	42mm	M10	G1/8"	G1/8"
FP-18-M	94mm	40mm	42mm	M10	G1/8"	G1/8"
FP-18-L	109mm	40mm	42mm	M10	G1/8"	G1/8"
FP-25-S	98mm	48mm	50mm	M12	G1/8"	G1/4"
FP-25-M	116mm	48mm	50mm	M12	G1/8"	G1/4"
FP-25-L	136mm	48mm	50mm	M12	G1/8"	G1/4"
FP-35-S	98mm	58mm	65mm	M12	G1/4"	G1/4"
FP-35-M	116mm	58mm	65mm	M12	G1/4"	G1/4"
FP-35-L	136mm	58mm	65mm	M12	G1/4"	G1/4"
FP-50-M	157mm	84.5mm	/	/	G1/4"	G1/4"
FP-60-M	157mm	95mm	/	/	G1/4"	G1/4"
FP-95-M	157mm	140mm	/	/	G3/8"	G3/8"

Our Production:

Solenoid Valve Production

More Pneumatic Vibrators:


Pneumatic Turbine Vibrator	Pneumatic Ball Vibrator	Pneumatic Roller Vibrator	Pneumatic Air Knocker

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
