Name: VXF2160 SMC Type Solenoid Pulse Jet Valve for Dust Collector 1'' VXF2160-10
Brand: Ningbo Brando Hardware Co., Ltd
SKU: VXF2160
Price: 49.10 USD
Availability: InStock

Home Products Pulse Jet Valve

VXF2160 SMC Type Solenoid Pulse Jet Valve for Dust Collector 1'' VXF2160-10

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	ISO, CE
Model Number:	VXF2160

Payment & Shipping Terms:

Minimum Order Quantity:	8pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	about 4 to 7 working days after payment landed
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	50000pcs per month

Contact Now

Detailed Product Description

Product Name:	Pulse Valve	Port Size:	1''
Body Material:	Aluminum	Diaphragm Material:	NBR
Working Pressure:	0.03 To 1 MPa	Voltage:	24VDC, 24VAC, 110VAC, 220VAC
Application:	Dust Collector
Highlight:	SMC Pulse Valve VXF2160 , SMC Pulse Valve VXF2160-10 , SMC Pulse Jet Valve

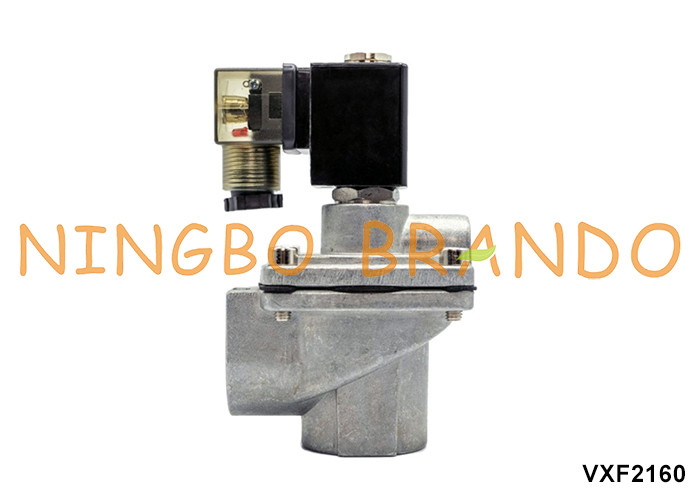

VXF2160 SMC Type Solenoid Pulse Jet Valve for Dust Collector 1'' VXF2160-10

This is a 1'' threaded port pulse valve, called VXF2160 (VXF2160-10). The supply voltage can be 24VDC, 24VAC, 110VAC or 220VAC. Pulse jet valve, also called diaphragm valve acts as a "switch" for compressed air in dust collector, controlled by the electric signals from a pulse controller.

Technical Data:

Solenoid Type	VXF2150	VXF2160	VXF2280
Air Operated Type	VXFA2150	VXFA2160	VXFA2280
Port Size	3/4''	1''	1-1/2''
Orifice Size	20mm	27mm	40mm
Diaphragm Material	NBR
Body Material	Aluminum (diecast)
Pressure Range	0.03 to 1 MPa
Voltage	24VDC, 24VAC, 110VAC, 220VAC

VXF2160 Dimension:

VXF2160 SMC Type Solenoid Pulse Jet Valve for Dust Collector 1'' VXF2160-10 0

Our Production:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Tag:

Contact Person: Mr. Brandon Bao

Tel: 86-13454729544

Fax: 86-574-83879820
