Name: MP-C-011 Solenoid Valve Coil 099257-009-D For Henny Penny Pressure Fryer
Brand: Ningbo Brando Hardware Co., Ltd
SKU: MP-C-011
Price: 49.10 USD
Availability: InStock

Home Products Solenoid Valve Coil

MP-C-011 Solenoid Valve Coil 099257-009-D For Henny Penny Pressure Fryer

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	MP-C-011

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiation
Packaging Details:	Plastic bag, Box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Solenoid Valve Coil	Model:	MP-C-011
Reference No:	099257-009-D	Voltage:	240/50 FB
Application:	Henny Penny Fryer	Fitted Solenoid Valve Model:	29515, 29547
Highlight:	MP-C-011 Solenoid Valve Coil , 099257-009-D Solenoid Valve Coil , ASCO Type MP-C-011

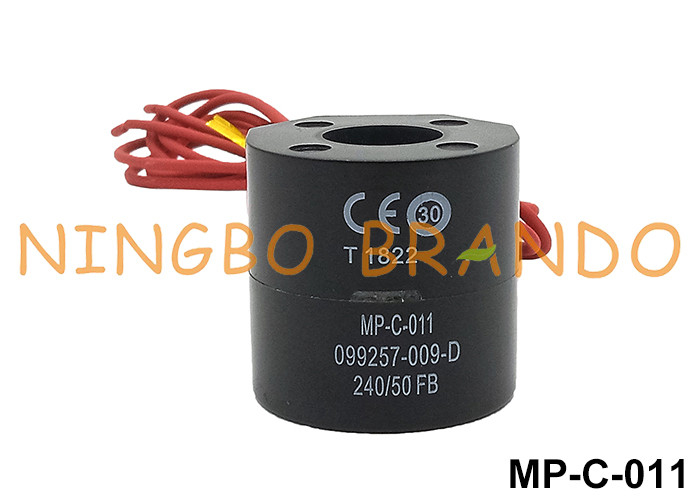

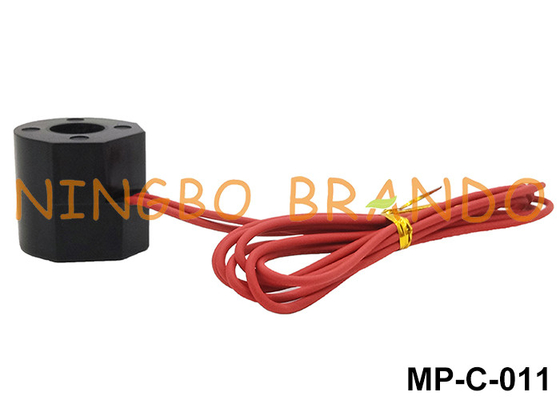

MP-C-011 Solenoid Valve Coil 099257-009-D For Henny Penny Pressure Fryer

This solenoid coil is same with ASCO Red-Hat MP-C-011 solenoid coil, which is popularly used for Henny Penny fryer steam solenoid valve. Solenoid Coil Standard Voltage: 24VAC, 110VAC, 120VAC, 220VAC, 240VAC. Fitted Solenoid Valve Model: 18724, 18721, 29515, 29547, 17120, 17121. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

Dimension & Data of MP-C-011 Solenoid Coil, Armature:

18721 18724 Henny Penny Solenoid Valve Coil MP-C-011 220VAC 240VAC 0

BRANDO Model	MP-C-011
Connector	Flying Leads
Voltage	24VAC, 110VAC, 120VAC, 220VAC, 240VAC (50/60Hz)
Insulation Class	F, H
Temperature Class	T, B
Fitted Solenoid Valve Model	18724, 18721, 29515, 29547, 17120, 17121
Application	Henny Penny Fryer

18721 18724 Henny Penny Solenoid Valve Coil MP-C-011 220VAC 240VAC 1

BRANDO Model	BAPC216049003
Function	2 Way Normally Closed
Plunger Tube Material	Stainless Steel
Shading Ring Material	Copper
Connection Type	Thread
Fitted Solenoid Coil	MP-C-011
Application	Henny Penny Fryer

Video of Solenoid Valve Coil MP-C-011 24VAC:

BRANDO Solenoid Valve Coils Production Video:

More Voltages of MP-C-011 Solenoid Coils for you to choose:


24VAC	110VAC, 120VAC	220VAC, 240VAC

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Tag:

Contact Person: Mr. Brandon Bao

Tel: 86-13454729544

Fax: 86-574-83879820
