| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | SCR353G230 |
| Minimum Order Quantity: | 8pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000pcs per month |
| Product Name: | Pulse Valve | Structure: | Full Immersion |
|---|---|---|---|
| Port Size: | 89mm | Orifice Size: | 76mm |
| Kv (m³/h): | 210 | Body Material: | Aluminum |
| Diaphragm Material: | NBR (Standard), FKM (Optional) | Working Pressure: | 1 To 6 Bar |
| Voltage: | 24VDC, 24VAC, 110VAC, 220VAC | Application: | Dust Collector |
| Highlight: | ASCO Pulse Valve SCR353G230,ASCO Pulse Jet Valve,ASCO Dust Collector Pulse Valve |
||

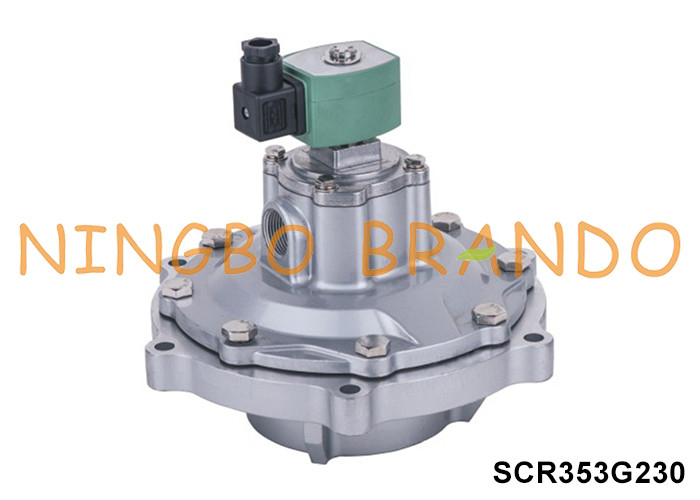

SCR353G230 ASCO Type Solenoid Pulse Jet Valve For Dust Collector 3'' 24V 110V 220V
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
1. Right Angle Type
2. Compression Fitting Type
3. Full Immersion Type
4. Flanged Type
5. Straight Through Type
Technical Data:
|
Model No
|
SCXE353.060
|
SCR353G230
|
SCR353G235
|
|
Port Size
|
88mm
|
89mm
|
103mm
|
|
Orifice Size
|
75mm
|
76mm
|
90mm
|
|
Kv (m³/h)
|
170
|
210
|
280
|
|
Structure
|
Full Immersion
|
||
|
Body Material
|
Aluminum
|
||
|
Diaphragm Material
|
NBR (Standard), FKM (Optional)
|
||
|
Working Pressure
|
1 to 6 bar
|
||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
||
SCR353G230 Dimension:
Our Production:
Related Products:
|
|
|
|
| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |
