| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | MD03-30M |
| Minimum Order Quantity: | 5sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 sets per month |
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | NBR |
|---|---|---|---|
| Seat Material: | Nylon | 1 Set: | 1pc Big Diaphragm, 1pc Small Diaphragm, 2pcs Springs |
| Fitted Pulse Valve Port: | 1 1/4'' | Fitted Pulse Valve Model: | TH-5430-M, TH-4430-M |
| High Light: | TAEHA Diaphragm MD03-30M,TAEHA Membrane MD03-30M,TAEHA Pulse Valve Diaphragm |
||

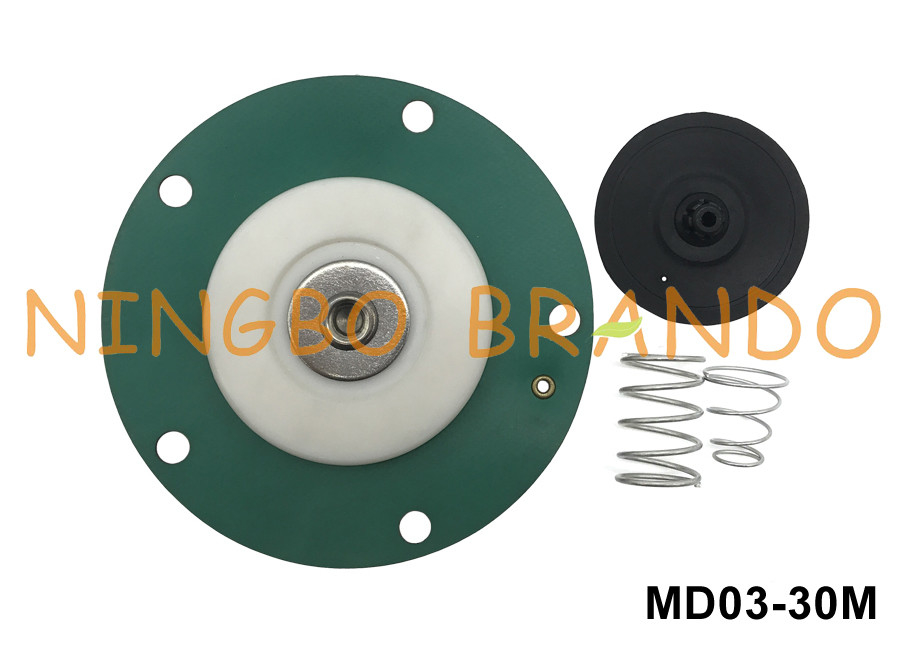

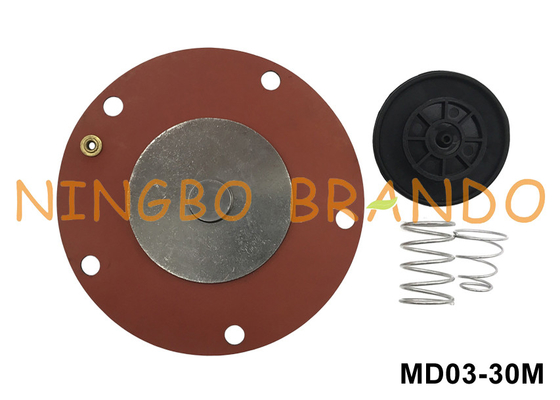

MD03-30M Diaphragm For TH-5430-M TH-4430-M Taeha Pulse Valve Membrane
MD03-30M diaphragm is used in TAEHA TH-5430-M and TH-4430-M pulse valves. The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
MD03-30M Dimension:
Order Code:
|
BRANDO Model
|
Diaphragm Model
|
Pulse Valve
Port Size
|
Pulse Valve
Model No
|
Diaphragm
Color
|
Diaphragm
Material
|
|
DH20
|
MD01-20
MD02-20
|
3/4''
|
TH-5820-B
TH-4820-B
TH-5825-B
TH-5820-C
TH-4820-C
|
Red & Green
|
NBR
|
|
DH25
|
MD01-25
MD02-25
|
1''
|
TH-4825-B
TH-5825-C
TH-4825-C
TH-5840-F
TH-4840-F
|
||
|
MD01-25M
|
TH-5825-M
|
||||
|
DH30
|
MD01-30
MD02-30
MD03-30
|
1 1/4''
|
TH-5830-B
TH-5430-B
TH-4830-B
TH-4430-B
|
||
|
MD03-30M
|
TH-5430-M
TH-4430-M
|
||||
|
DH40
|
MD01-40
MD02-40
MD03-40
|
1 1/2''
|
TH-5840-B
TH-5440-B
TH-4840-B
TH-4440-B
TH-5840-C
TH-5440-C
TH-4840-C
TH-4440-C
TH-5850-F
TH-5450-F
TH-4850-F
TH-4450-F
|
||
|
DH40M
|
MD03-40M
|
1 1/2''
|
TH-5440-M
TH-4440-M
|
||
|
DH50
|
MD03-50
|
2''
|
TH-5450-B
TH-4450-B
|
||
|
DH50M
|
MD03-50M
|
2''
|
TH-5450-M
TH-4450-M
|
||
|
DH60
|
MD03-60
MD04-60
|
2 1/2''
|
TH-5460-B
TH-4460-B
TH-5460-S
TH-4460-S
|
||
|
DH75
|
MD03-75
|
3''
|
TH-5475-B
TH-4475-B
|
||
|
MD03-75M
|
3''
|
TH-5475-M
TH-4475-M
|
|||
|
DH90M
|
MD03-90M
|
3 1/2''
|
TH-5490-M
TH-4490-M
|
||
|
DH100M
|
MD03-00M
|
4''
|
TH-5400-M
TH-4400-M
|
Our Production:
