| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | P1650150 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000pcs per month |
| Product Name: | Solenoid Pump | Flow Rate: | 650 Cc/min |
|---|---|---|---|
| Max Pressure: | 15 Bar | Inlet Size: | Hose Barb (φ7.2mm) |
| Outlet Size: | G1/8'' | ON/OFF Time: | 2/1 Min |
| Working Fluids: | Water | Fluid Temperature: | 25℃ |
| Ambient Temperature: | 45℃ | Voltage: | 110VAC, 220VAC |
| Application: | Coffee Machine, Steam Iron, Steam Cleaner, Water Dispenser, Medical Equipment, Etc | ||
| High Light: | Solenoid Pump 15 bar,Coffee Machine Solenoid Pump,Solenoid Pump 230V |
||

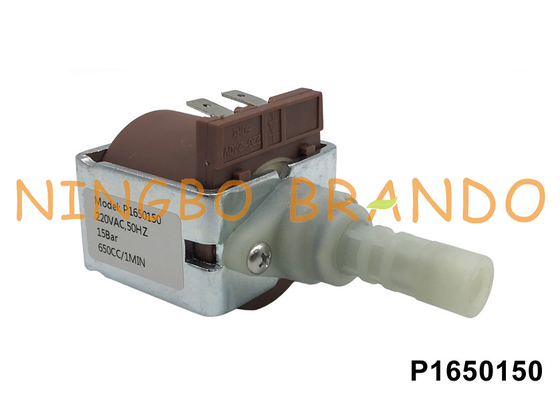

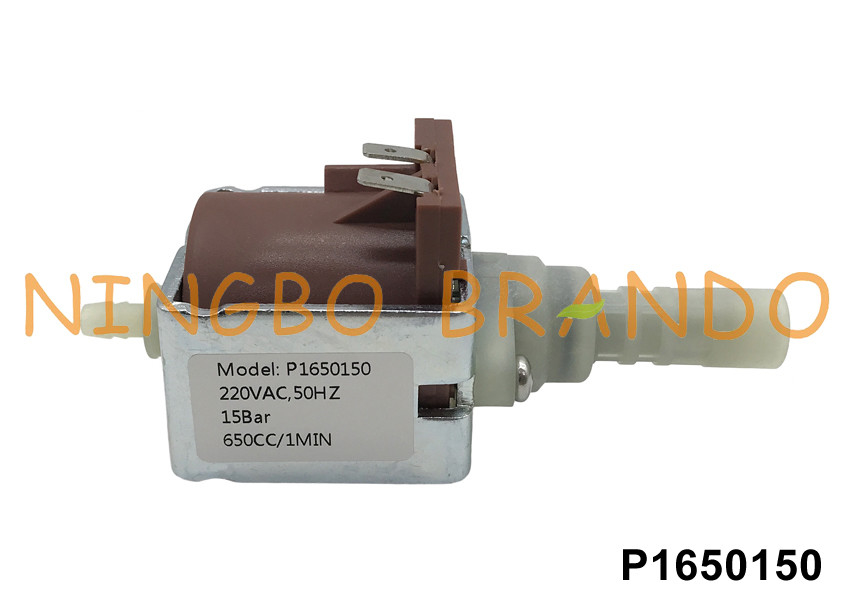

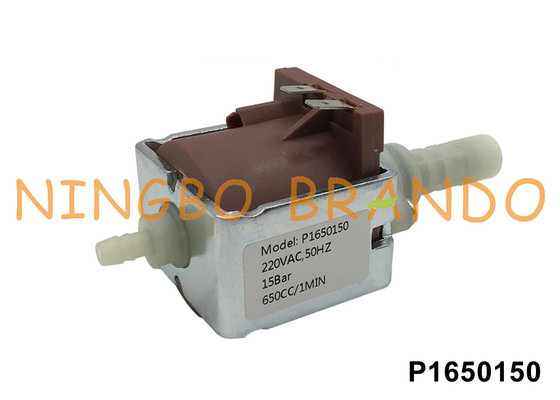

15 bar 650cc/min Solenoid Pump For Espresso Coffee Machine 24V 120V 230V
A solenoid pump is a type of positive displacement pump that uses a solenoid to control the flow of liquids or gases. It operates on the principle of electromagnetism, where an electric current flowing through a wire coil generates a magnetic field that pulls or pushes a plunger or piston to regulate the flow of fluid. It is popularly used in coffee machine, steam iron, steam cleaning, medical equipments, etc.
Product Features:
1. Product Name: Solenoid Pump
2. Insulation Class: H
3. Inlet: Hose Barb (φ7.2mm)
4. Oultlet: G1/8''
5. Voltage: 110VAC, 220VAC
6. Fluid Temperature: 25℃
7. Ambient Temperature: 45℃
8. Flow Rate: 450cc to 1500cc/min
9. Max Pressure: 25 bar
10. On/OFF: 2/1min
Technical Data:
Main Dimension:
Flow Curve:
Our Production:
More Solenoid Pumps:
|
|
|
| 50 to 800cc/min | 50 to 200cc/min | 700 to 1200cc/min |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
