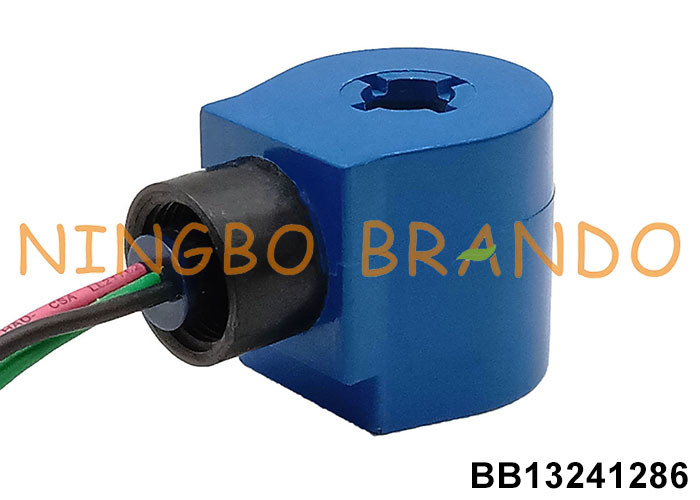

BB13241286 GC Type Solenoid Coil HS4GN16A24 HS4GN02A24 HS4GN04A24

BB13241286 GC Type Solenoid Coil HS4GN16A24 HS4GN02A24 HS4GN04A24

This HS4GN solenoid coil is popularly used in GC solenoid valves; the standard coil voltage is 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, and the standard coil power is 13VA, 10W, 14W, other voltage and power can be customized. The reference number of this coil is HS4GN01A24, HS4GN02A24, HS4GN03A24, HS4GN04A24, HS4GN07A24, HS4GN13A24, HS4GN14A24, HS4GN15A24, HS4GN16A24, HS4GN17A24, HS4GN18A24, HS4GN19A24, HS4GN24A24, HS4GN33A24.

Technical Data:

	BRANDO Model	BB13241286
	Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
	Power	13VA, 10W, 14W
	Other voltage and power can be customized
	Connection Type	Flying Leads

Fitted Armature:

	BRANDO Model	BAPC2130344103
	Guide Tube Material	SS304
	Seal Material	NBR (standard) EPDM, FKM (available)
	Function	2 Way Normally Closed

Our Production:

More Solenoid Coils and Armatures:

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the type and size of the power supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
