| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | K7600, K7601 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 100000 sets per month |
| Product Name: | Pulse Valve Diaphragm | Ordering Number: | K7600, K7601 |
|---|---|---|---|
| Diaphragm Material: | NBR, Viton | Seat Material: | Rubber, Nylon |
| 1 Set: | 1x Big Diaphragm, 1x Small Diaphragm, 2x Springs | Fitted Pulse Valve Model: | CA76T, RCA76T, CA76MM, RCA76MM |

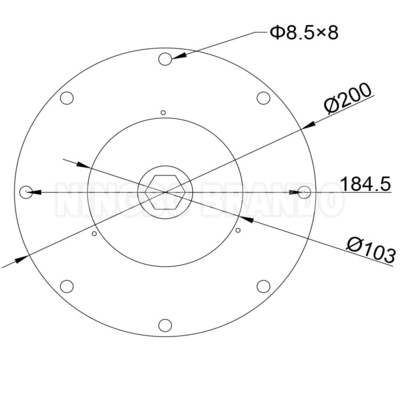

| Seat OD: | 102mm | Diaphragm OD: | 200mm |
| High Light: | Pulse Valve Repair Kit CA76T,Goyen Diaphragm K7600,Diaphragm For Pulse Valve |
||
K7600 K7601 K7602 K7604 Diaphragm For 3" Pulse Valve Repair Kit CA76T CA76MM
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
K7600, K7601 Diaphragm for Goyen pulse valve CA76T, RCA76T, CA76MM, RCA76MM; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse valves are the "switch" for compressed air in the dust clean blowing system of the pulse bag filter. It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve. Inside the pulse valve, the rubber diaphragm opens and closes to release the compressed air stored in the air header. At this time, the air enters the blowing pipe above the filter through the valve, and then enters the filter down to clean the filter bag.
Ordering Number of Diaphragm For Goyen Pulse Valve:
|
Pulse Valve Model
|
NBR Diaphragm Model
|
FKM Diaphragm Model
|
Low Temprature Diaphragm Model
|
|
|
RCA10-6T
|
K1001
|
K1002
|
/
|
|
|
CA20T
|
RCA20T
|
K2000 (M1204B) K2002 (M764) |
K2007
|
/
|
|
CA20DD
|
RCA20DD
|
|||
|
CA25T
|
RCA25T
|
K2501 (M1183B) K2502 (M736) |
K2503 (M1887)
|
K2504
|
|
CA25DD
|
RCA25DD
|
|||
|
CAC25FS
|
RCA25FS
|
|||
|
CA25MM
|
RCA25MM
|
|||
|
CA32T
|
RCA32T
|
K2500 (M1183)
K2522 (M736)
|
K2503 (M1887)
|
/
|
|
CA35T
|
RCA35T
|
K3500 (M1581)
|
K3501
|
K3502 (M1591)
|
|
CA40T
|
RCA40T
|
K4000 (M1182)
|
K4007
|
/
|
|
CA40MM
|
RCA40MM
|
|||
|
CA45T
|
RCA45T
|
K4502 (M2162) K4504 (M2187) |
K4503
|
K4522
|
|
CA45DD
|
RCA45DD
|
|||
|
CA45FS
|
RCA45FS
|
|||
|
CA40MR
|
RCA40MR
|
|||
|
CA50T
|
RCA50T
|
K5004 (M1638A) K5005 (M1639A) |
K5000
|
/
|
|
CA62T
|
RCA62T
|
|||
|
CA76T
|
RCA76T
|
K7600
|
K7601
|
/
|
|
CA76MM
|
RCA76MM
|
|||
|
CA76MR
|
RCA76MR
|
|||
|
CA102MM
|
RCA102MM
|
K10200
|
K10201
|
/
|
|
CA62MR
|
RCA62MR
|
K7604
|
K7602
|
/
|
|
RCA20M
|
K2003 (M1174B)
|
/
|
/
|
|
|
RCAC20T3, ST3, DD3, FS3
|
K2016
|
K2017
|
/
|
|
|
RCAC25T3, DD3, FS3
|
K2529
|
K2530
|
|
|
|
RCAC25FH3
|
K2531
|
/
|
/
|
|
|
|
||||
|
Pulse Valve Model
|
Shockwave Diaphragm Model
|
FKM Diaphragm Model
|
/
|
|
|
RCAC20T4, ST4, DD4, FS4
|
K2034
|
K2033
|
/
|
|
|
RCAC25T4, ST4, DD4, FS4
|
K2546
|
K2551
|
/
|
|
|
RCAC25FH3
|
K2545
|
/
|
/
|
|
|
RCAC25T3, DD3, FS3
|
K2549
|
/
|
/
|
|
