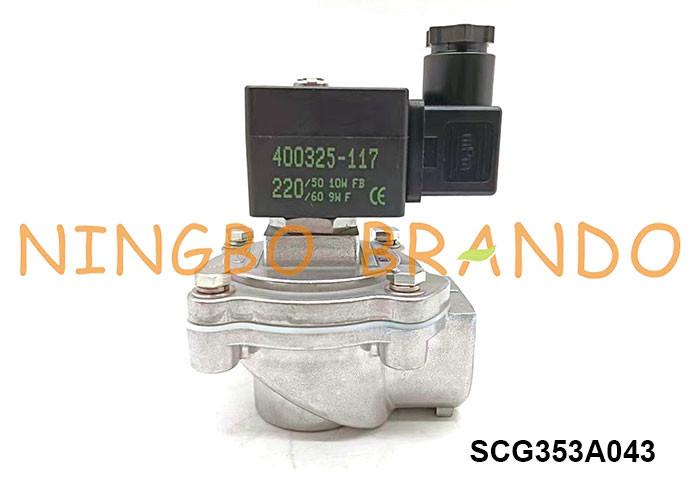

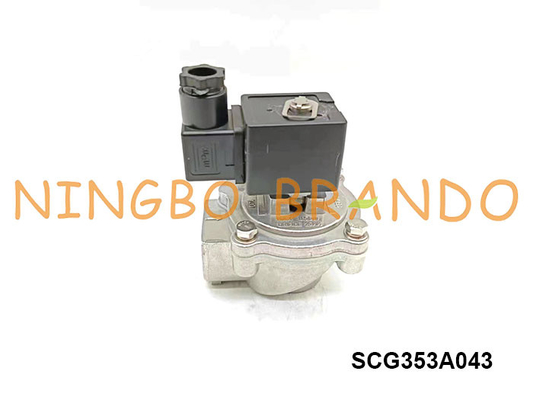

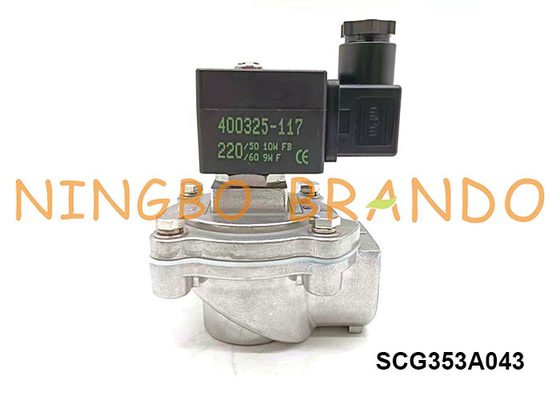

Name: SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve For Dust Collector
Brand: Brando
SKU: SCG353A043
Rating: 4.8 (114 reviews)

Home Products Pulse Jet Valve

SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve For Dust Collector

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	SCG353A043

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Port Size:	G3/4''	Nonimal Diameter:	φ20
Valve Type:	Right Angle	Connection Type:	Threaded
Media:	Air	Working Pressure:	0.3~0.8Mpa
Voltage:	AC220V, AC110V, AC24V, DC24V	Action Type:	Diaphragm Pilot Operated
Diaphragm Material:	NBR, TPE	Valve Body Material:	Aluminum ADC12
High Light:	SCG353A043 Pulse Jet Valve , 353 Series Pulse Jet Valve , ASCO Type SCG353A043

SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve

Products Description

These valves are specifically developed for filter cleaning of dust collectors and baghouses in reverse pulse jet systems. Those applications require high peak pressure, high flow rates, long life, and extremely fast valve opening and closing for effective filter cleaning while minimizing compressed air waste. When considering pulse valve characteristics, key attributes sought alike include robust performance, reliability, and ease of use. Today’s more popular pulse valves on the market offer users a simplified design that helps to maximize valve performance, translating into longer system uptimes. For the functional design of a pulse valve, there are multiple connection options, including threaded, dresser, and even a quick-mount option that enables faster, easier, and more secure installation.

Main Dimension

SCG353A043

Technical Data

Model No	SCG353A043	SCG353A044	SCG353A047	SCG353A050	SCG353A051
Port Size	G3/4''	G1''	G1 1/2''	G2''	G2 1/2''
Orifice Size	25mm	25mm	50mm	66mm	66mm
Diaphragm Number	1		2
Diaphragm Material	TPE, NBR, FKM		NBR, FKM
Body Material	Aluminium (Diecast)
Operating Pressure Differential	0.35 to 8.5 bar
Voltage	24VDC, 24VAC, 110VAC, 220VAC

Spare Parts & Controller

Our Production

Application of ASCO Type Solenoid Pulse Valve:

The ASCO Type Dust Collector Series are high-flow fast-opening 2-way valves, pilot valves, pilot valve enclosures, and bulkhead fittings that have been specially designed for use in dust collector systems.

Concrete Processing
Grain, Agriculture and Feed
Metal Working (Abrasive Blasting)
Food Processing
Foundries
Pharmaceutical

Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel

Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel
