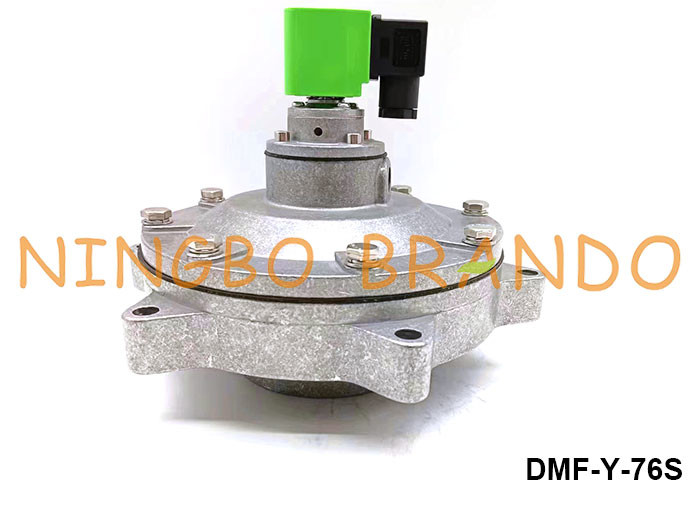

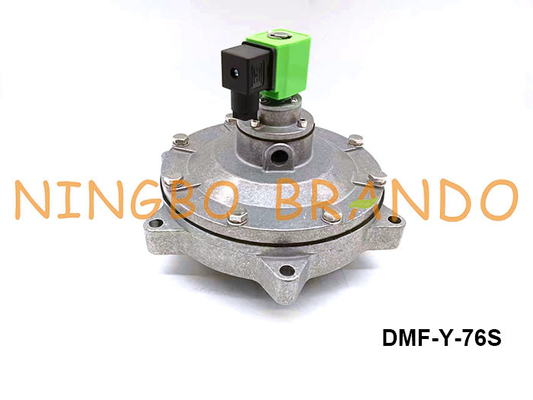

Name: 3'' DMF-Y-76S BFEC Embedded Pulse Jet Valve For Dust Collector Baghouse Bag Filter
Brand: BRANDO
SKU: DMF-Y-76S
Rating: 5 (197 reviews)

Home Products Pulse Jet Valve

3'' DMF-Y-76S BFEC Embedded Pulse Jet Valve For Dust Collector Baghouse Bag Filter

Product Details:

Place of Origin:	China
Brand Name:	BRANDO
Certification:	CE
Model Number:	DMF-Y-76S

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	4-7 days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	BFEC Pulse Jet Valve	Valve Type:	Submerged
Port Size:	3''	Coil Voltage:	24VAC, 220VAC, 110VAC, 24VDC
Diaphragm Material:	NBR, VITON	No Of Diaphragm:	2
Body Material:	Aluminum Alloy	Pressure Range:	0.1 To 0.8MPa
High Light:	3'' DMF-Y-76S Pulse Valve , BFEC Embedded Pulse Jet Valve , Pulse Valve For Dust Collector

3'' DMF-Y-76S BFEC Dust Collector Submerged Pulse Jet Valve 24V 220V

Products Description

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

The technical characteristics of our Pulse Jet Valve:
1. Vacuum treatment for solenoid coil to eliminate harmful impurities, it makes the pilot work more sensative and reliable;
2. Orifice and unloading port match with the pulse valve, fast opening and closing, so it increases the blowing volume per unit time;
3. Membrane: Effective bonding and Sufficient tensile strength, Reliable sealing, Great anti-corrosion and anti-aging properties, we use high-performance diaphragm so that it ensures long-term operation reliability.
4. We are using high-quality pressure spring to guarantee at least 1 millon times of service life.

Submerged Pulse Valve Options

DMF-Y-25

DMF-Y-40S

DMF-Y-50S

DMF-Y-62S

DMF-Y-76S

DMF-Y-102S

Technical Data

Model Number	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S
Port Size (Inch)	1''	1 1/2''	2''	2 1/2''	3''	4''
Diaphragm Number	1	2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 110VAC, 220VAC

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

Our Production

Dimension of DMF-Y-76S BFEC Pulse Jet Valve:

3'' DMF-Y-76S BFEC Embedded Pulse Jet Valve For Dust Collector Baghouse Bag Filter 7

More BFEC Pulse Valve For You to Choose:

3'' DMF-Y-76S BFEC Embedded Pulse Jet Valve For Dust Collector Baghouse Bag Filter 8

Right Angle Type Quick Mount Type Submerged Type

3'' DMF-Y-76S BFEC Embedded Pulse Jet Valve For Dust Collector Baghouse Bag Filter 11

Diaphragm Solenoid Coil Armature Assembly Pulse Controller
