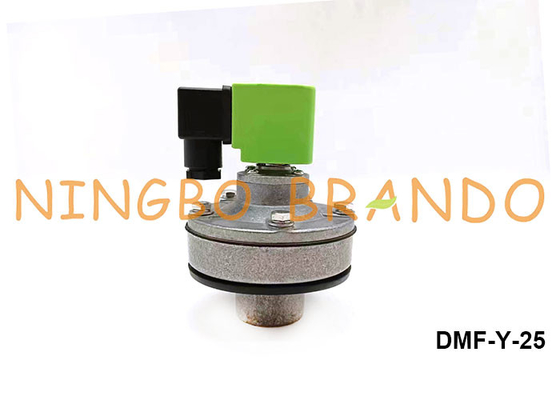

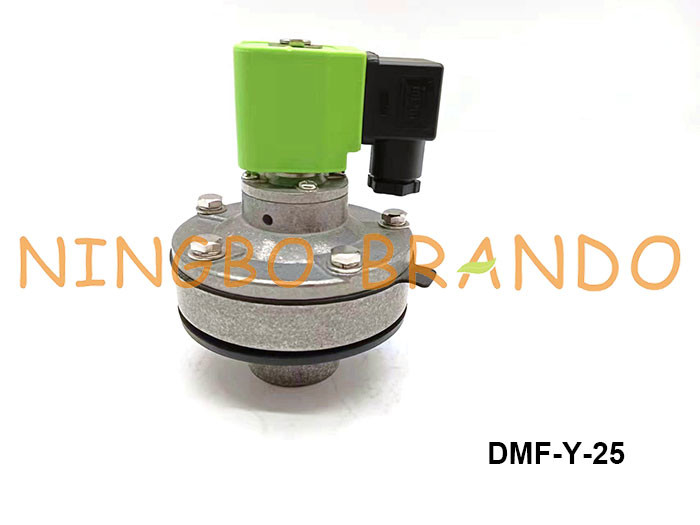

1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector

1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector

  • 1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector
  • 1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector
1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: ISO, CE
Model Number: DMF-Y-25
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4 to 7 days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Port Size: 1'' Valve Type: Submerged
Valve Operation: Diaphragm Pilot Operated Diaphragm Material: NBR, FKM
Coil Voltages: 24VDC, 24VAC, 110VAC, 220VAC Working Pressure Range: 0.1 To 0.8 MPa
Body Material: Aluminum Alloy Application: Dust Collector
High Light:

Embedded Diaphragm Pulse Valve

,

DMF-Y-25 Pulse Valve

,

1" Solenoid Pulse Jet Valve

1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector



Products Description
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

* Right Angle Type
* Submerged Type
* Quick Mount Type
* Straight Through Type
* Flanged Type

Main Dimension
1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector 0



DMF-Y-25

Technical Data
Model Number
DMF-Y-25


DMF-Y-40S
DMF-Y-50S
DMF-Y-62S
DMF-Y-76S
DMF-Y-102S
Port Size (Inch)
1''
1 1/2''
2''
2 1/2''
3''
4''
Diaphragm Number
1
2
Diaphragm Material
NBR, FKM
Body Material
Aluminum Alloy
Pressure Range
0.1 to 0.8 MPa
Voltage
24VDC, 24VAC, 110VAC, 220VAC

Our Production
1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector 1
Packing&Shipping
1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector 2



Internal Box

1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector 3



Carton

1" DMF-Y-25 BFEC Embedded Diaphragm Solenoid Pulse Jet Valve For Dust Collector 4



Pallet



More BFEC Pulse Valves for you to choose:

BFEC Pulse Valve 0 BFEC Pulse Valve 1 DMF-Y-25 BFEC Submerged Solenoid Pulse Jet Valve For Dust Collector 3 BFEC Pulse Valve 2
Right Angle Type Quick Mount Type Straight Through Type Submerged Type
BFEC Pulse Valve 3 BFEC Pulse Valve 4 BFEC Pulse Valve 5 1.5'' Straight Through Pulse Jet Diaphragm Valve For Dust Collector 8
Diaphragm Solenoid Coil Solenoid Armature Pulse Controller



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
