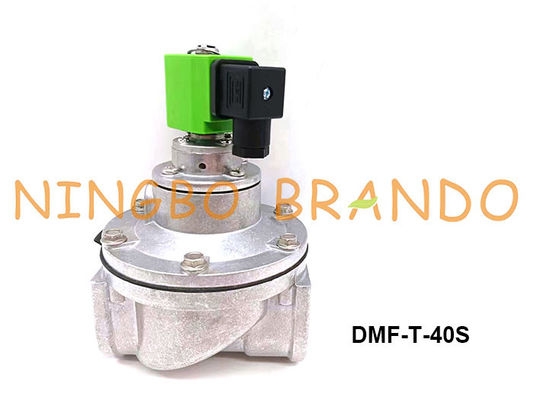

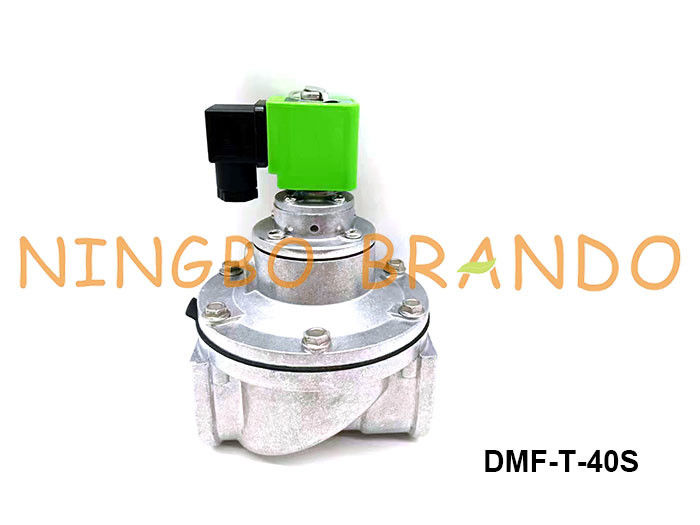

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	DMF-T-40S

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	50000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Pulse Valve	Valve Design:	Straight Through, Threaded Port
Port Size:	1 1/2''	Diaphragm Material:	NBR, FKM
Voltage:	24VDC, 110VAC, 220VAC	Working Pressure Range:	0.1 To 0.8 MPa
High Light:	Pulse Jet Valve 1 1/2'' , BFEC DMF-T-40S , Straight Through Pulse Valve

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector

Products Description

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
DMF-Z-40S type sbfec right angle solenoid pulse jet valves, It is 1-1/2" port size.Normal is G thread, NPT thread is also available. SBFEC solenoid pulse jet valve, we have two types right angle thread type & submerged type, with different connection from 20mm~102mm, 3/4" ~4". It is 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.

Suitable for :

Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

Ordering Code

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector 0

Main Dimension

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector 1

DMF-T-40S

Technical Data

Integral Pilot	DMF-T-20	DMF-T-25S	DMF-T-40S	DMF-T-50S	DMF-T-62S
Remote Pilot	MF-T-20	MF-T-25S	MF-T-40S	MF-T-50S	MF-T-62S
Port Size	3/4''	1''	1 1/2''	2''	2 1/2''
Diaphragm Number	1	2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 24VAC, 110VAC, 220VAC

Pulse Valve Series

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector 2

Our Production

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector 3

Technical Data of T Series Straight Through Pulse Valve:

Integral Pilot	DMF-T-20	DMF-T-25S	DMF-T-40S	DMF-T-50S	DMF-T-62S
Remote Pilot	MF-T-20	MF-T-25S	MF-T-40S	MF-T-50S	MF-T-62S
Port Size	3/4''	1''	1 1/2''	2''	2 1/2''
Diaphragm Number	1	2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 24VAC, 110VAC, 220VAC

Related Products:


Solenoid Coil	Solenoid Armature	Diaphragm	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
