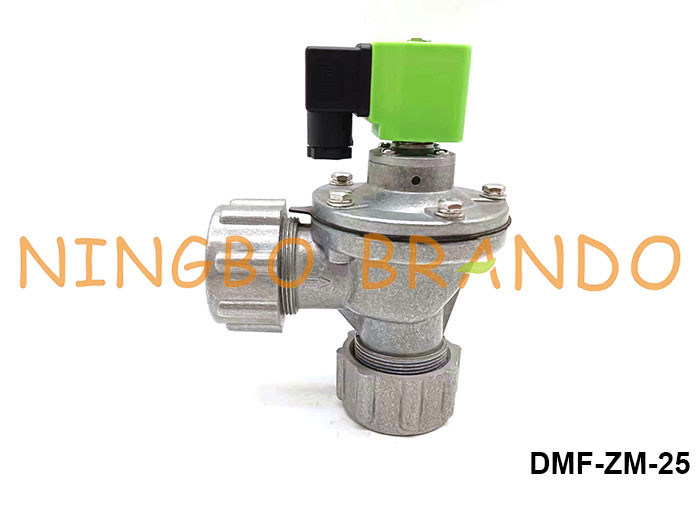

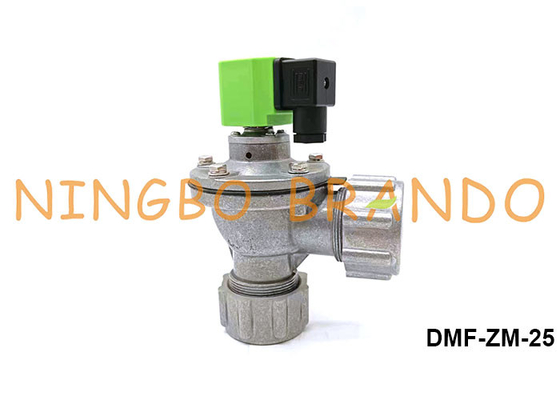

DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut

DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut

  • DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut
  • DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut
DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: ISO, CE
Model Number: DMF-ZM-25
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4 to 7 days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Port Size: 1'' Valve Type: Quick Mount, Fixed Nut Port
Valve Operation: Diaphragm Pilot Operated Diaphragm Material: NBR, FKM
Coil Voltages: 24VAC, 24VDC, 110VAC, 220VAC Working Pressure Range: 0.1 To 0.8 MPa
Body Material: Aluminum Alloy Power: Solenoid
High Light:

Quick Mount Pulse Valve

,

Pulse Valve Fixed Nut

,

BFEC Type DMF-ZM-25 Pulse Valve

DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut



Products Description
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

The DMF-Z solenoid/diaphragm valve is kind of vertical-angle valve, with an included angle of 90° between inlet and outlet. It simplifies the connection between gas bag and blowing tube of a dust collector. It can provide stronger airflow and meet dust removing requirements.
The DMF-Y solenoid/diaphragm valve is kind of submerged valve (namely, insert valve), which is installed directly on a secondary gas bag and achieves better circulation quality. The valve has less pressure loss, and is applicable to the operations with lower gas pressure.
DMF-ZM The Solenoid/Diaphragm valve pulse jet valve is kind of vertical-angle valve similar to the z-series valves, suitable for connection between gas bag and blowing tube of a dust collector. It has fixed nuts for installation purposes at the inlet and outlet end, for easier installation and application.
The DMF-T solenoid/diaphragm valve is kind of through valve, with an included angle of 180° between the inlet and outlet (central line of both inlet and outlet are the same straight line). Also, the inlet is connected to a gas storage tank, while its outlet is connected to a blowing tube.
Quick Mount Pulse Valve Options
DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut 0
DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut 1
DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut 2
DMF-ZM-20
DMF-ZM-25
DMF-ZM-40S
Technical Data
Model No
DMF-ZM-20
DMF-ZM-25
DMF-ZM-40S
Port Size (mm)
27
34
48
Port Size (Inch)
3/4''
1''
1 1/2''
Diaphragm Number
1
1
2
Diaphragm Material
NBR, FKM
Valve Body Material
Aluminum Alloy
Coil Voltage
110VAC, 220VAC, 24VDC
Pressure Range
0.1 to 0.8 MPa





Dimension of DMF-ZM-25 Pulse Jet Valve:

1'' DMF-ZM-25 BFEC Quick Mount Pulse Diaphragm Valve For Dust Removal 0

Our Production
DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut 4
Packing&Shipping
DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut 5



Internal Box

DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut 6



Carton

DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut 7



Pallet


More BFEC Pulse Valves for you to choose:

BFEC Pulse Valve 0 BFEC Pulse Valve 1 1'' DMF-ZM-25 BFEC Quick Mount Pulse Diaphragm Valve For Dust Removal 3 BFEC Pulse Valve 2
Right Angle Type Quick Mount Type Straight Through Type Submerged Type
BFEC Pulse Valve 3 BFEC Pulse Valve 4 BFEC Pulse Valve 5 1.5'' Straight Through Pulse Jet Diaphragm Valve For Dust Collector 8
Diaphragm Solenoid Coil Solenoid Armature Pulse Controller



OEM ODM Service



Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
