| Place of Origin: | CHINA |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | AC, BC |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | bubble bag, inner box, carton, then pallet |
| Delivery Time: | 7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Product Name: | Filter Regulator Lubricator | Model: | AC1500, AC2000, BC2000, BC3000, BC4000 |
|---|---|---|---|
| Fluid: | Air | Port Size: | 1/8'', 1/4'', 3/8'', 1/2'' |
| Filtering Grade: | 40 μm Or 5 μm | Max Pressure: | 1.0Mpa (145Psi) |
| Proof Pressure: | 1.5Mpa (215Psi) | Capacity Of Drain Bowl: | 15CC, 60CC |
| Capacity Of Oil Bowl: | 25CC, 90CC | Recommended Lubricant: | ISO VG 32 Or Equivalent |
| Highlight: | BC2000 Filter Regulator Lubricator,Air Filter Regulator Lubricator,Airtac Type FRL Unit |
||

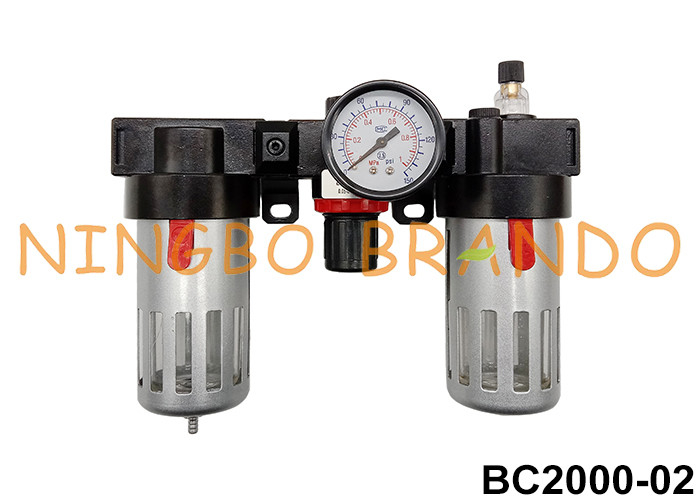

BC2000 FRL Unit Air Filter Regulator Lubricator Combination
Modular style of air preparation equipment which includes a Filter Regulator and a Lubricator joined together by a mounting bracket. This cleans the air of water, oil and other suspended debris, regulates the downstream pressure and injects mico mist lubricant into the cleaned air to give air tools and machines longer life. Easy to install and service, all units come with mounting bracket, guage, auto drain and polycarbonate bowl guard with sight glass.
Specification of AC, BC series Filter Regulator Lubricator:
| Model | AC1500 | AC2000 | BC2000 | BC3000 | BC4000 | |
| Fluid | Air | |||||
| Port Size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | |
| Filtering Grade | 40μm or 5μm | |||||
| Pressure Range |
Semi-auto and automatic drain: 0.15 to 0.9 MPa (20 to 130 psi) Manual drain: 0.5 to 0.9 MPa (7 to 130 psi) |
|||||
| Max Pressure | 1.0 MPa (145 psi) | |||||
| Proof Pressure | 1.5 MPa (215 psi) | |||||
| Temperature Range | -5 to 70℃ (unfreeze) | |||||
| Capacity of drain bowl | 15CC | 60CC | ||||
| Capacity of oil bowl | 25CC | 90CC | ||||
| Recommand lubricant | ISO VG 32 or equivalent | |||||
| Constitute | Filter | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |
Ordering Code of AC, BC series Filter Regulator Lubricator:
Inner Structure of AC, BC series Filter Regulator Lubricator:
Dimension of AC, BC series Filter Regulator Lubricator:
