| Place of Origin: | CHINA |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | AC3010-03 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | bubble bag, inner box, carton, then pallet |
| Delivery Time: | 7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Product Name: | Filter Regulator Lubricator | Model: | AC1010, AC2010, AC3010, AC4010 |
|---|---|---|---|
| Fluid: | Air | Port Size: | M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'' |
| Filtering Grade: | 5 μm | Max Pressure: | 1.0Mpa (145Psi) |
| Proof Pressure: | 1.5Mpa (215Psi) | Recommended Lubricant: | ISO VG 32 Or Equivalent |
| High Light: | AC3010-02 Filter Regulator,1/4'' Filter Regulator,SMC Type Filter Regulator And Lubricator |
||

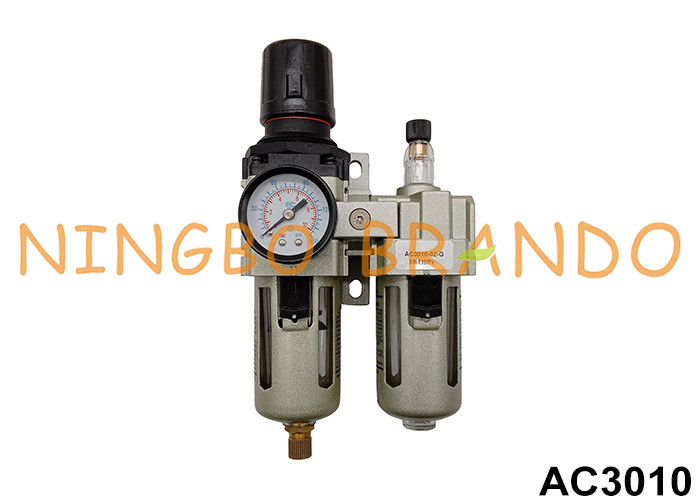

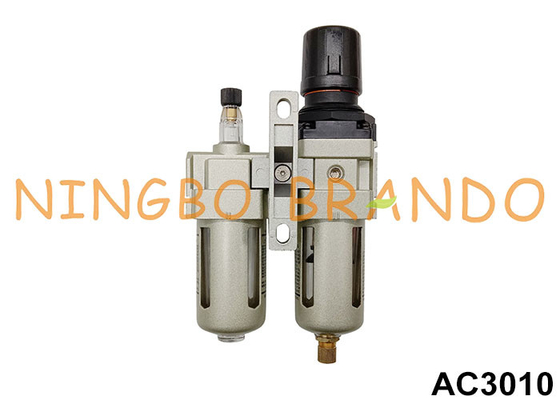

AC3010-02 1/4'' FRL Air Filter Regulator And Lubricator Combo
FRL (Filter, Regulator, Lubricator) System
Air leaving a compressor is dirty and wet and can damage downstream equipment and shorten its life cycle. Before air can be used it needs to be filtered, regulated, and lubricated.
Choose from a range of high performance and efficient Air Preparation products for your application needs. Full featured filters, regulators, filter/regulators and lubricators are available with a wide range of standard options to meet your air preparation needs. These clean air systems make it easy for companies to protect equipment, reduce downtime and maintenance costs and maximize compressed air solutions.
Specification of AC series Filter Regulator Lubricator:
| Model | AC1010 | AC2010 | AC3010 | AC4010 | AC4010-06 | |
|
Combination Equipment |
Filter Regulator | AW1000 | AW2000 | AW3000 | AW4000 | AW4000-06 |
| Lubricator | AL1000 | AL2000 | AL3000 | AL4000 | AL4000-06 | |
| Port Size | M5 |
1/8'' 1/4'' |
1/4'' 3/8'' |
1/4'' 3/8'' 1/2'' |
3/4'' | |
| Gauge Port Size | 1/16'' | 1/8'' | 1/8'' | 1/4'' | 1/4'' | |
| Fluid | Air | |||||
| Proof Pressure | 1.5 MPa | |||||
| Max Operating Pressure | 1.0 MPa | |||||
| Set pressure range | 0.05 to 0.7 MPa | 0.05 to 0.85 MPa | ||||
| Flow (L/MinANR)) | 90 | 500 | 1700 | 3000 | 3000 | |
| Ambient And Fluid Temperature | -5 to 60 ℃ (Non-freezing) | |||||
| Filtration | 5μm | |||||
| Recommand Lubricant | Turbin oil class (ISO BG32) | |||||
| Bowl Material | Polycarbonate | |||||
| Construction/Regulator | Relieving style | |||||
Dimension of AC series Filter Regulator Lubricator:
Combinations of AC series Filter Regulator Lubricator:
