| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | MF-Z-25 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000 pcs per month |
| Product Name: | Remote Pilot Pulse Valve | Structure: | Right Angle, Threaded Port |
|---|---|---|---|
| Remote Pilot Size: | 1/8'', 1/4'' | Port Size: | 1'' |
| Diaphragm Material: | NBR, FKM | Working Pressure Range: | 0.1 To 0.8 MPa |
| High Light: | Remote Pilot Pulse Jet Valve,Pulse Jet Valve 1'',BFEC MF-Z-25 |
||

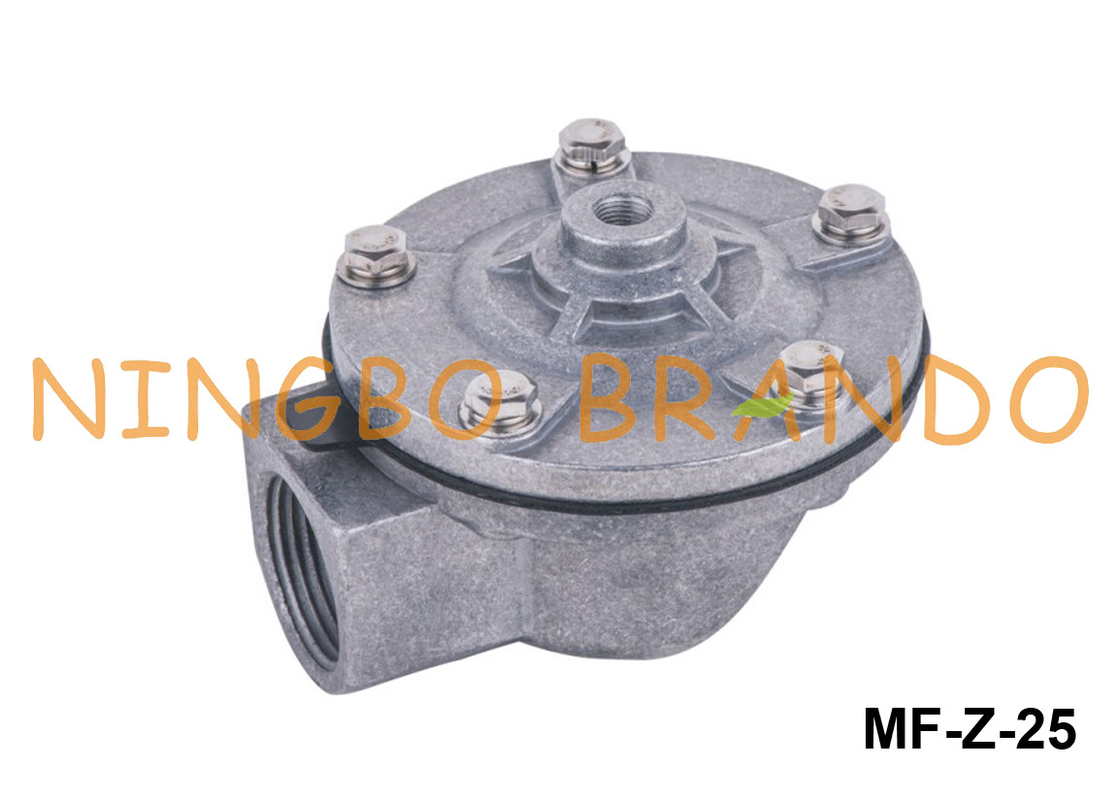

BFEC MF-Z-25 1'' Threaded Remote Pilot Pulse Jet Valve For Dust Removal
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Ordering Code of Z Series Pulse Valve:
Dimension of MF-Z-25 Pulse Valve:
Technical Data of Z Series Threaded Pulse Valve:
|
Integral Pilot
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
Remote Pilot
|
MF-Z-20
|
MF-Z-25
|
MF-Z-40S
|
MF-Z-50S
|
MF-Z-62S
|
MF-Z-76S
|
MF-Z-102S
|
|
Port Size
|
3/4''
|
1''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
4''
|
|
Diaphragm Number
|
1
|
2
|
|||||
|
Diaphragm Material
|
NBR, FKM
|
||||||
|
Body Material
|
Aluminum Alloy
|
||||||
|
Working Pressure Range
|
0.1 to 0.8 MPa
|
||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
||||||
