| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DMF-ZF-40S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000 pcs per month |
| Product Name: | Pulse Valve | Valve Design: | Right Angle, Flanged Inlet |
|---|---|---|---|
| Port Size: | 1 1/2'' | Diaphragm Material: | NBR, FKM |
| Voltage: | 24VDC, 110VAC, 220VAC | Working Pressure Range: | 0.1 To 0.8 MPa |
| High Light: | Flanged Pulse Jet Valve,Pulse Jet Valve 24V,BFEC DMF-ZF-40S |
||

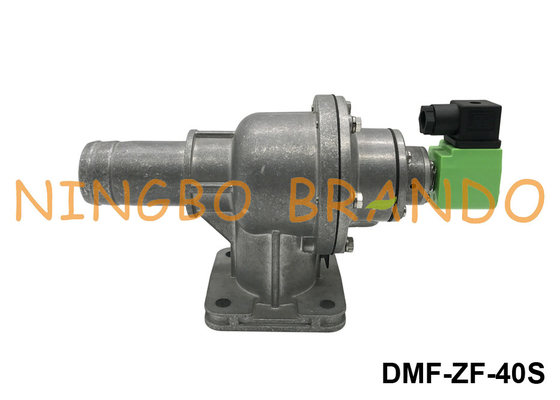

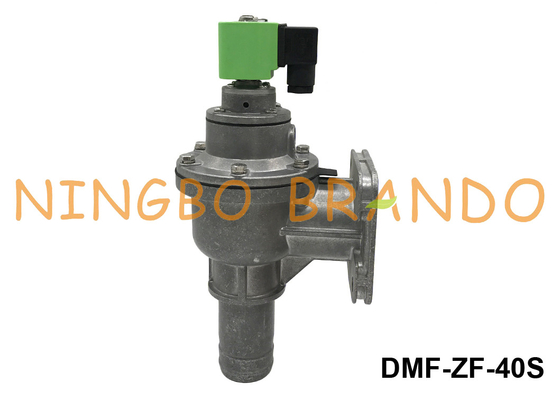

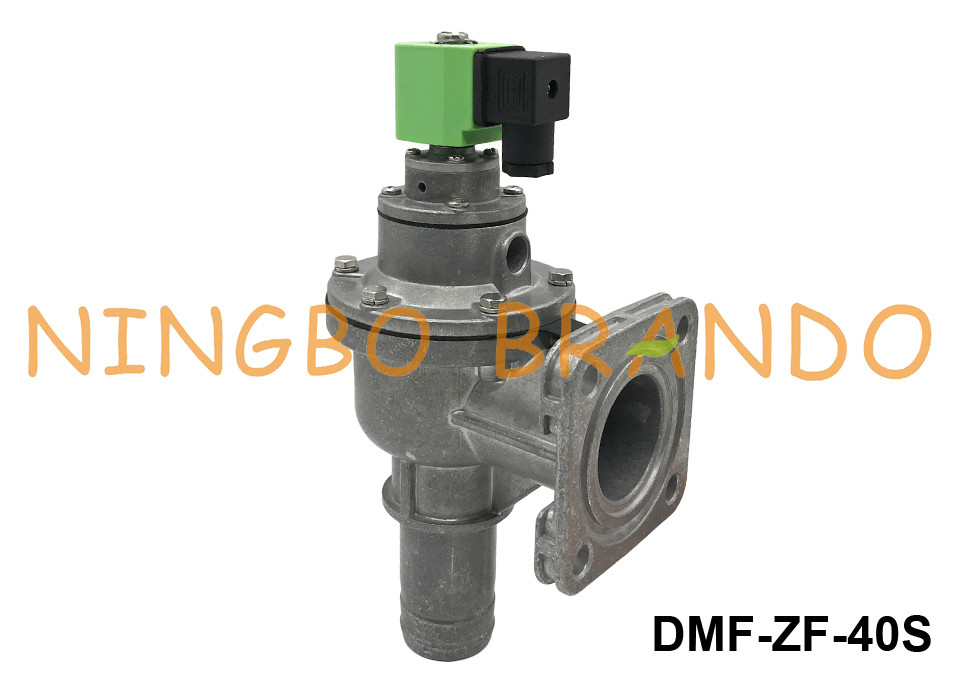

BFEC DMF-ZF-40S Flanged Pulse Jet Valve For Dust Collector 24V 110V 220V
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Ordering Code of ZF Series Flanged Pulse Valve:
Dimension of DMF-ZF-40S Pulse Valve:
Technical Data of ZF Series Flanged Pulse Valve:
|
Integral Pilot
|
DMF-ZF-25
|
DMF-ZF-40S
|
|
Remote Pilot
|
MF-ZF-25
|
MF-ZF-40S
|
|
Connection Size (mm)
|
34
|
48
|
|
Diaphragm Number
|
1
|
2
|
|
Diaphragm Material
|
NBR, FKM
|
|
|
Body Material
|
Aluminum Alloy
|
|
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|
|
Working Pressure Range
|
0.1 to 0.8 MPa
|
|
Related Products:
|
|
|
|
| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |
Production Picture of Pulse Valve:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
