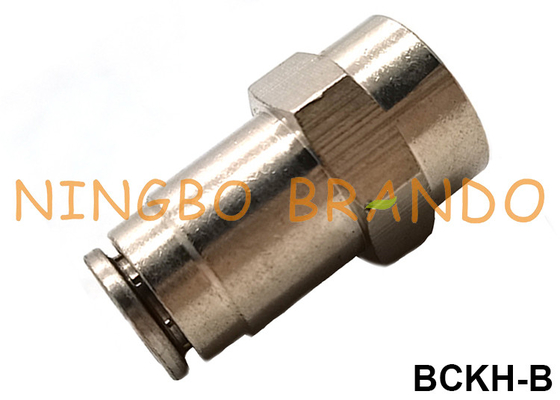

Brass Push On Female Straight Connect Pneumatic Hose Fitting 1/8" 1/4" 3/8" 1/2"

Brass Push On Female Straight Connect Pneumatic Hose Fitting 1/8" 1/4" 3/8" 1/2"

  • Brass Push On Female Straight Connect Pneumatic Hose Fitting 1/8" 1/4" 3/8" 1/2"
Brass Push On Female Straight Connect Pneumatic Hose Fitting 1/8" 1/4" 3/8" 1/2"
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: BCKH-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Plastic bag, Box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000000pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Hose Fittings Type: Female Straight
Tube OD (Inch): 1/8", 1/4", 3/8", 1/2" Tube OD (Mertric): 4mm, 6mm, 8mm, 10mm, 12mm
Material: Brass Working Pressure Range: 0 To 0.8 MPa
Working Temperature: 0 To +60℃ Connection: Push In
High Light:

Female Straight Pneumatic Hose Fitting

,

Push To Connect Pneumatic Hose Fitting

,

Brass Metal Air Hose Fittings

Brass Push On Female Straight Connect Pneumatic Hose Fitting 1/8" 1/4" 3/8" 1/2"



BRANDO's pneumatic fittings provide easy connection and disconnection tube without causing damage to the tube. Our pneumatic fittings are available in a variety of types, sizes and thread types to satisfy various metric and inch tube demands. Our pneumatic fittings could accommodate both metric size tubing and inch size tubing that are made from polyurethane, polyethylene and nylon.
Options for you:
1. Fitting Body Material: Plastic, Brass
2. Connection Type: Push In Type, Fast Twist Type, Ferrule Type
3. Thread types: R (PT, BSPT), G (BSPP), NPT, UNF, UNC, Metric
4. Accommodate metric size tubing OD: 3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm
5. Accommodate inch size tubing OD: 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8"



Technical data of Pneumatic Hose Fittings:

Material
Plastic / Brass
Threaded Connection
BSP
BSPP
Metric Thread
NPT
Working Pressure
0 to 0.8MPa
Connecting Tube
PA
PU
Connecting Diameter Tube
3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm (Outer Diameter)
Medium
Compressed Air
Working Temperature
~60℃



Specifications of Female Straight Brass Pneumatic Hose Fittings:

Brass Push On Female Straight Connect Pneumatic Hose Fitting 1/8" 1/4" 3/8" 1/2" 0

Model No
D
M
L1
L
S
BCKH-B-2.5
4
G1/8''

          7

26
13
G1/4''
9
28
16
G3/8''
10
29
19
G1/2''
11
30
24
BCKH-B-4
6
G1/8''
7
28
13
G1/4''
9
30
16
G3/8''
10
31
19
G1/2''
11
32
24
BCKH-B-6
8
G1/8''
7
28
14
G1/4''
9
30
16
G3/8''
10
31
19
G1/2''
11
32
24
BCKH-B-8
10
G1/8''
7
30
16
G1/4''
9
32
16
G3/8''
10
33
19
G1/2''
11
34
24
BCKH-B-10
12
G1/8''
7
30
19
G1/4''
9
32
19
G3/8''
10
33
19
G1/2''
11
34
24



Product Video of BRANDO Brass Pneumatic Hose Fittings:


List of All Push To Connect Brass Pneumatic Hose Fittings:

list



Choosing the Right Fittings for Your Pneumatic System:



Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
