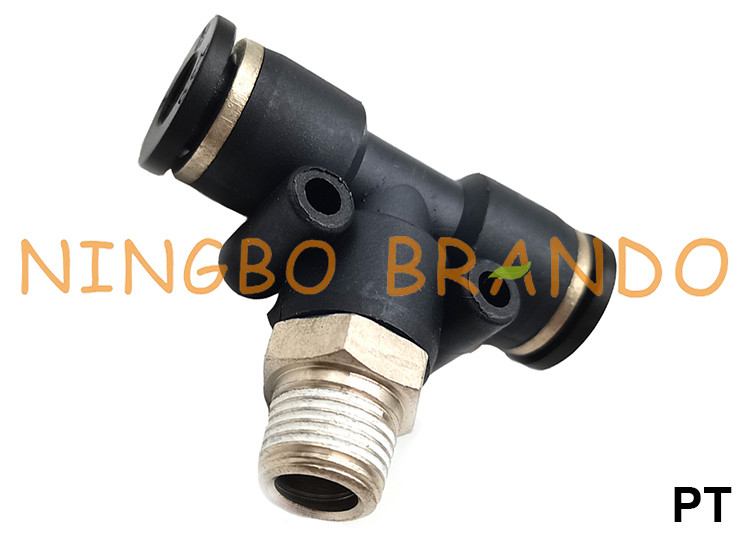

PT-G T Shape Male Branch Tee Push In Connect Pneumatic Hose Fittings

PT-G T Shape Male Branch Tee Push In Connect Pneumatic Hose Fittings

Brando's push to connect pneumatic hose fittings (or push-in pneumatic hose fittings) are a quick and convenient method of connecting components in a pneumatic system. Designed for use with polyurethane, polyethylene, and nylon tubing, our composite push-in fittings are available in a variety of sizes to accommodate tubing ranging from 1/8 OD to 1/2 OD. Numerous configurations are available to meet your connection requirements.

Features:

1. Push-in fittings are so defined as they allow to connect the tube to the fitting in a “instantaneous” way without using tools.

2. The tightness of the tube takes place through an elastic clamp which holds the tube on the external diameter and releases it by pushing the suitable puller.

3.This type of fittings is used in order to speed up the assembly phases mainly in reduced space and timesaving during connection of different pneumatic components.

Dimension & Order Code of Pneumatic Hose Fittings:

Straight Male Fitting:

Picture	Dimension	Part No.	R	D	L1	L	S	Inner Hex
		PC4	M5X0.8	4	6	22	10	3
			M6X1	4	6	22	10	3
			R1/8"	4	8	21	12	3
			R1/4"	4	9	18	13	3
			R3/8"	4	10	20	17	3
			R1/2"	4	11	22	21	3
		PC6	M5X0.8	6	6	23	12	4
			M6X1	6	6	23	12	4
			R1/8"	6	8	22	12	4
			R1/4"	6	9	22	13	4
			R3/8"	6	10	21	17	4
			R1/2"	6	11	23	21	4
		PC8	R1/8"	8	8	27	14	4
			R1/4"	8	9	24	14	6
			R3/8"	8	10	22	17	6
			R1/2"	8	11	23	21	6
		PC10	R1/8"	10	8	29	27	4
			R1/4"	10	9	30	17	6
			R3/8"	10	10	28	17	8
			R1/2"	10	11	24	21	8
		PC12	R1/8"	12	8	31	19	4
			R1/2"	12	9	32	19	6
			R3/8"	12	10	29	19	10
			R1/2"	12	11	31	21	10

Elbow Push Male Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PL4	M5X0.8	4	11	6	19	25	10
			M6X1	4	11	6	19	25	10
			R1/8"	4	11	8	19	27	12
			R1/4"	4	11	9	19	28	13
			R3/8"	4	11	10	19	30	17
			R1/2"	4	11	11	19	31	21
		PL6	M5X0.8	6	13	6	20	26	12
			M6X1	6	13	6	20	26	12
			R1/8"	6	13	8	20	28	12
			R1/4"	6	13	9	20	29	13
			R3/8"	6	13	10	20	31	17
			R1/2"	6	13	11	20	32	21
		PL8	R1/8"	8	14	8	23	31	14
			R1/4"	8	14	9	23	32	14
			R3/8"	8	14	10	23	33	17
			R1/2"	8	14	11	23	35	21
		PL10	R1/8"	10	18	8	27	35	27
			R1/4"	10	18	9	27	36	17
			R3/8"	10	18	10	27	37	17
			R1/2"	10	18	11	27	39	21
		PL12	R1/8"	12	21	8	30	37	19
			R1/2"	12	21	9	30	38	19
			R3/8"	12	21	10	30	39	19
			R1/2"	12	21	11	30	41	21

Branch Tee Male Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PT4	M5X0.8	4	11	6	19	25	10
			M6X1	4	11	6	19	25	10
			R1/8"	4	11	8	19	27	12
			R1/4"	4	11	9	19	28	13
			R3/8"	4	11	10	19	30	17
			R1/2"	4	11	11	19	31	21
		PT6	M5X0.8	6	13	6	20	26	12
			M6X1	6	13	6	20	26	12
			R1/8"	6	13	8	20	28	12
			R1/4"	6	13	9	20	29	13
			R3/8"	6	13	10	20	31	17
			R1/2"	6	13	11	20	32	21
		PT8	R1/8"	8	14	8	23	31	14
			R1/4"	8	14	9	23	32	14
			R3/8"	8	14	10	23	33	17
			R1/2"	8	14	11	23	35	21
		PT10	R1/8"	10	18	8	27	35	27
			R1/4"	10	18	9	27	36	17
			R3/8"	10	18	10	27	37	17
			R1/2"	10	18	11	27	39	21
		PT12	R1/8"	12	21	8	30	37	19
			R1/2"	12	21	9	30	38	19
			R3/8"	12	21	10	30	39	19
			R1/2"	12	21	11	30	41	21

List of All Plastic Pneumatic Hose Fittings:

Choosing the Right Fittings for Your Pneumatic System:

Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.
Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
