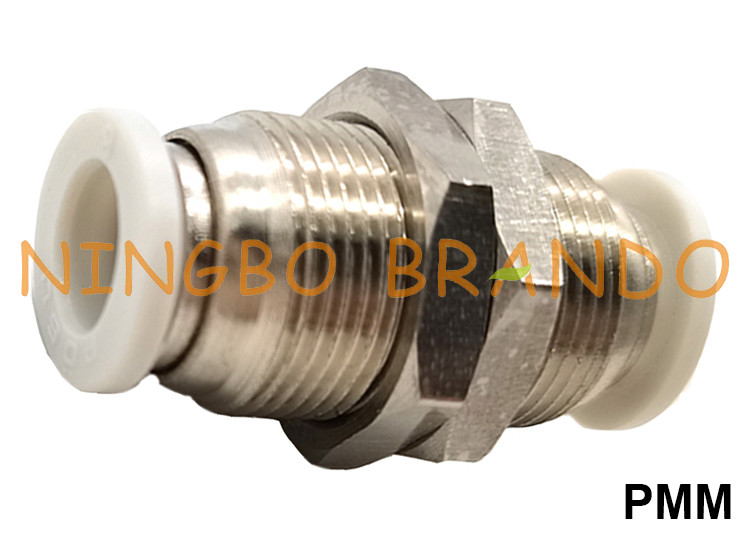

PMM Bulkhead Union Push To Connect Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''

PMM Bulkhead Union Push To Connect Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''

Brando's push to connect pneumatic hose fittings (or push-in pneumatic hose fittings) are a quick and convenient method of connecting components in a pneumatic system. Designed for use with polyurethane, polyethylene, and nylon tubing, our composite push-in fittings are available in a variety of sizes to accommodate tubing ranging from 1/8 OD to 1/2 OD. Numerous configurations are available to meet your connection requirements.

See individual product listings below for additional information and specifications.

Dimension & Order Code of Pneumatic Hose Fittings:

Straight Male Fitting:

Picture	Dimension	Part No.	R	D	L1	L	S	Inner Hex
		PC4	M5X0.8	4	6	22	10	3
			M6X1	4	6	22	10	3
			R1/8"	4	8	21	12	3
			R1/4"	4	9	18	13	3
			R3/8"	4	10	20	17	3
			R1/2"	4	11	22	21	3
		PC6	M5X0.8	6	6	23	12	4
			M6X1	6	6	23	12	4
			R1/8"	6	8	22	12	4
			R1/4"	6	9	22	13	4
			R3/8"	6	10	21	17	4
			R1/2"	6	11	23	21	4
		PC8	R1/8"	8	8	27	14	4
			R1/4"	8	9	24	14	6
			R3/8"	8	10	22	17	6
			R1/2"	8	11	23	21	6
		PC10	R1/8"	10	8	29	27	4
			R1/4"	10	9	30	17	6
			R3/8"	10	10	28	17	8
			R1/2"	10	11	24	21	8
		PC12	R1/8"	12	8	31	19	4
			R1/2"	12	9	32	19	6
			R3/8"	12	10	29	19	10
			R1/2"	12	11	31	21	10

Elbow Push Male Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PL4	M5X0.8	4	11	6	19	25	10
			M6X1	4	11	6	19	25	10
			R1/8"	4	11	8	19	27	12
			R1/4"	4	11	9	19	28	13
			R3/8"	4	11	10	19	30	17
			R1/2"	4	11	11	19	31	21
		PL6	M5X0.8	6	13	6	20	26	12
			M6X1	6	13	6	20	26	12
			R1/8"	6	13	8	20	28	12
			R1/4"	6	13	9	20	29	13
			R3/8"	6	13	10	20	31	17
			R1/2"	6	13	11	20	32	21
		PL8	R1/8"	8	14	8	23	31	14
			R1/4"	8	14	9	23	32	14
			R3/8"	8	14	10	23	33	17
			R1/2"	8	14	11	23	35	21
		PL10	R1/8"	10	18	8	27	35	27
			R1/4"	10	18	9	27	36	17
			R3/8"	10	18	10	27	37	17
			R1/2"	10	18	11	27	39	21
		PL12	R1/8"	12	21	8	30	37	19
			R1/2"	12	21	9	30	38	19
			R3/8"	12	21	10	30	39	19
			R1/2"	12	21	11	30	41	21

Branch Tee Male Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PT4	M5X0.8	4	11	6	19	25	10
			M6X1	4	11	6	19	25	10
			R1/8"	4	11	8	19	27	12
			R1/4"	4	11	9	19	28	13
			R3/8"	4	11	10	19	30	17
			R1/2"	4	11	11	19	31	21
		PT6	M5X0.8	6	13	6	20	26	12
			M6X1	6	13	6	20	26	12
			R1/8"	6	13	8	20	28	12
			R1/4"	6	13	9	20	29	13
			R3/8"	6	13	10	20	31	17
			R1/2"	6	13	11	20	32	21
		PT8	R1/8"	8	14	8	23	31	14
			R1/4"	8	14	9	23	32	14
			R3/8"	8	14	10	23	33	17
			R1/2"	8	14	11	23	35	21
		PT10	R1/8"	10	18	8	27	35	27
			R1/4"	10	18	9	27	36	17
			R3/8"	10	18	10	27	37	17
			R1/2"	10	18	11	27	39	21
		PT12	R1/8"	12	21	8	30	37	19
			R1/2"	12	21	9	30	38	19
			R3/8"	12	21	10	30	39	19
			R1/2"	12	21	11	30	41	21

List of All Plastic Pneumatic Hose Fittings:

Directions for use!

1. Do Not Exceed 145psi Pressure
2. Do Not Use the Product Outside the Temperature Range
3. Do Not Use in Places with Too Much Dust or Particles
4. Do Not Use Any Medium Other Than Air. the Product is Limited to Air or Vacuum Environment.
5. After Completing the Connection, Please Gently Pull the Tube with 6. Your Hand to Make Sure That It is Completely Connected Without Falling Off.
7. Please Ensure That the Cross Section of the Trachea is Perpendicular to the Trachea.
8. Do Not Work Under Additional Load (bending, Twisting, Pulling, Etc.) Except Air Pressure.
9. when Inserting the Tube, Please Insert the Tube into the Bottom Before Use.
