| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | CA50T |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Type: | Right Angle Diaphragm Valve | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 2'' |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 2 |
| Pressure: | 0.1 To 0.8 MPa | Temperature: | -25 To +80 ℃ |
| High Light: | CA50T Goyen Pulse Jet Valve,2'' Dust Collector Pulse Valve,Pulse Jet Valve For Bag Filter |
||

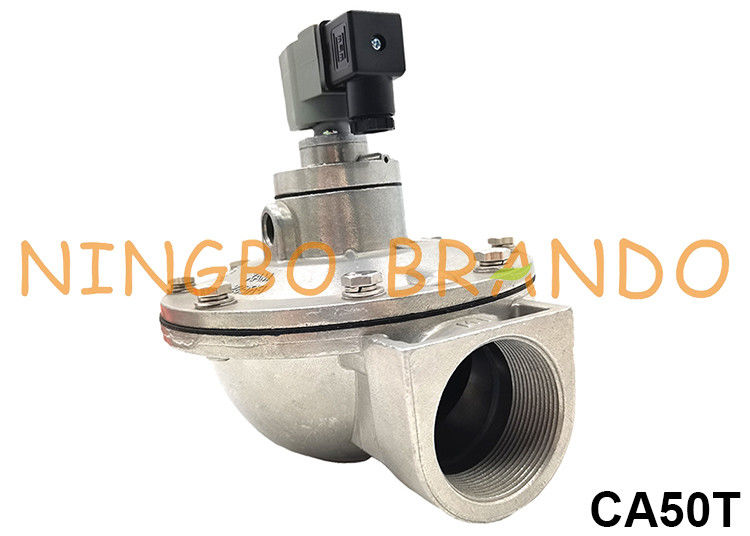

CA50T Goyen Type 2'' Dust Collector Diaphragm Pulse Jet Valve For Bag Filter
Maintenance kits:
| Nitrile | Viton | Low Temp–60°C (–76°F) MIN. | Includes |
| K5004 | K5000 | NA | Diaphragm kits include main and secondary diaphragms (where required) and all springs. |
| K0380 | K0384 | NA | O-ring, armature assembly, armature spring, ferrule |
Technical Data of Goyen Pulse Jet Valve:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Nonimal size
|
φ15
|
φ20
|
φ25
|
φ35
|
φ45
|
φ50
|
φ62
|
φ76
|
|
Port Size
|
G1/2''
|
G3/4''
|
G1''
|
G1 1/4''
|
G1 1/2''
|
G2''
|
G2 1/2''
|
G3''
|
|
Working pressure
|
0.3-0.8MPa
|
|||||||
|
Temp. range
|
-5℃ - 55℃
|
|||||||
|
Relative humidity
|
≤85%
|
|||||||
|
Working
medium
|
Compressed clean air
|
|||||||
|
Service life
|
Over 1000000 times
|
|||||||
|
Voltage
|
DC24V, AC24V, AC110V, AC220V
|
|||||||
Main Dimension:
