| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | VNP208 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Pulse Valve | Port Size: | 1'' |
|---|---|---|---|
| Structure: | Right Angle, Threaded Port | Operation: | Diaphragm Pilot Operated |
| Diaphragm Material: | NBR, FKM | Body Material: | Aluminum Alloy |
| Working Pressure Range: | 0.5 To 7.5 Bar | Voltage: | 24VDC, 24VAC, 110VAC, 220VAC |
| Highlight: | 1'' Right Angle Pulse Jet Valve,VNP208 Pulse Jet Valve,Mecair Type VNP208 |
||

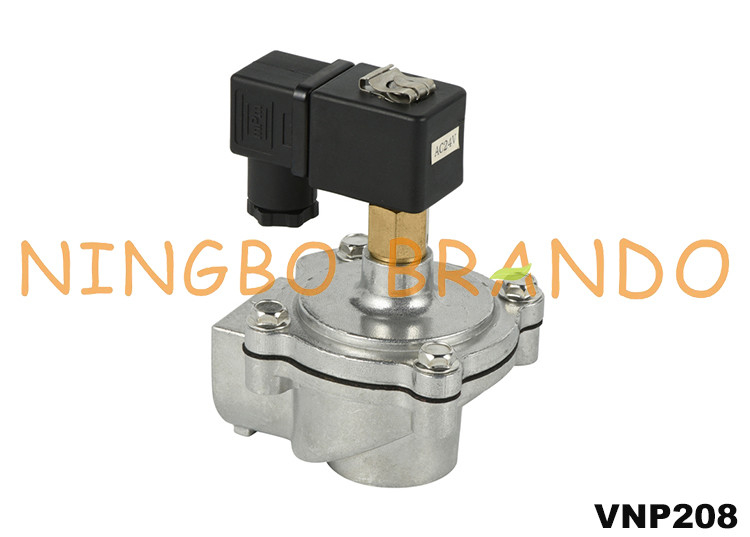

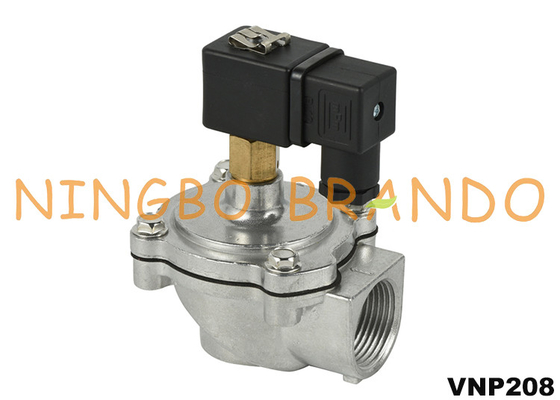

VNP208 1'' Right Angle Threaded Pulse Jet Valve For Dust Collector
200 Series Pulse Valves are especially suitable for jet pulse filters, bag filters, ceramic filters and sintered metal filters. Its special design provides extremely fast opening time, high flow rate and easy installation. Pulse valves are made of aluminum alloy. Because of the anodized coating on it, they are not damaged by corrosive and environmental factors. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened.
Technical Data of 200 Series Threaded Pulse Jet Valves:
|
Model
|
VNP206
|
VNP208
|
VNP212
|
VNP214
|
VNP216
|
VNP220
|
|
Port Size
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
|
Valve Structure
|
90° Right Angle
|
|||||
|
Pipe Connection
|
Threaded
|
|||||
|
Body Material
|
Aluminum Alloy
|
|||||
|
Diaphragm Material
|
NBR, FKM
|
|||||
|
Working Pressure
|
0.5 to 7.5 bar
|
|||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||
Dimension of VNP208 Pulse Jet Valve:
Video of VNP208 Pulse Jet Valve:
