| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DMF-ZM-25 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Type: | Diaphragm Valve With Dresser Nut | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 1'' |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 1 |
| Pressure: | 0.1 To 0.8 MPa | Temperature: | -25 To +80 ℃ |
| High Light: | BFEC DMF-ZM-25 Pulse Jet Valve,Quick Mount Pulse Jet Valve,Diaphragm Solenoid Dust Collector |
||

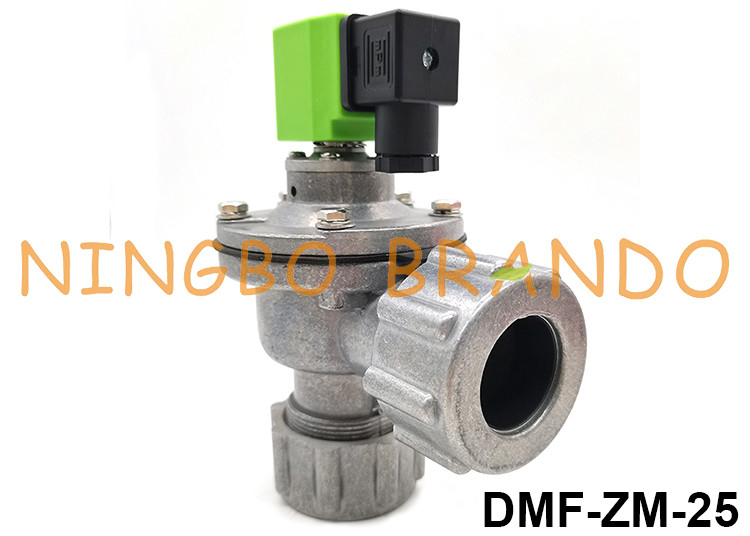

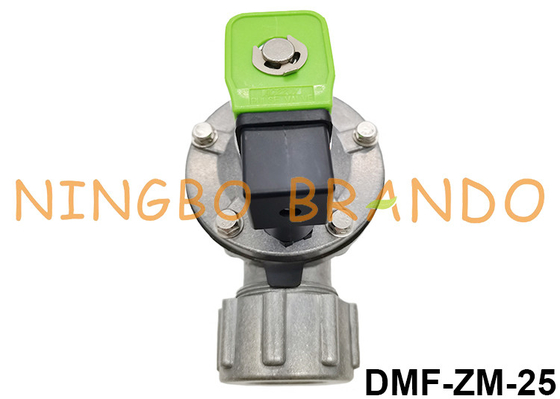

BFEC DMF-ZM-25 1'' Quick Mount Dust Collector Pulse Jet Valve 24V 110V 220V
FEATURES of DMF-ZM-25 Diaphragm Valve:
1. It is a single diaphragm valve with fix nut.
2. Pilot valve, remote solenoid enclosures, fittings and other accessories.
3. Programmable sequencing and differential pressure controllers.
4.Port Size is 1'' Inch.
5.suitable for dust collector applications, in particular for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters.
6.Diaphragm pulse valves are for controlling air pulses in dust collectors.
Technical Data of SBFEC Type DMF-ZM Series Pulse Jet Valve:
|
Model
|
DMF-ZM-20
|
DMF-ZM-25
|
DMF-ZM-40S
|
|
|
Nominal Size
|
20
|
25
|
40
|
|
|
Port size
|
mm
|
20
|
25
|
40
|
|
in
|
3/4
|
1
|
1 1/2
|
|
|
Blowing Area (m2)
|
3.5~6
|
8~10
|
12~16
|
|
|
Number of Diaphragms
|
1
|
1
|
2
|
|
|
Flow
|
Kv
|
17.55
|
26.16
|
45.82
|
|
Cv
|
20.48
|
50.53
|
53.47
|
|
|
Pressure (Psi)
|
0.1Mpa~0.8Mpa
|
|||
|
Temperature (℃)
|
-25℃ to +80℃
|
|||
|
Voltage
|
AC220V, AC110V, AC24V, DC24V
|
|||
Main Dimension:
BFEC DMF Series Pulse Jet Valve For Dust Collector System:
|
Thread Valve
|
3/4''
|
1''
|
1.5''
|
2''
|
2.5''
|
3''
|
4''
|
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
|
Quick Mount Valve
|
3/4''
|
Inlet φ27
|
1''
|
1.5''
|
|||
|
DMF-ZM-20
|
DMF-ZL-B
|
DMF-ZM-25
|
DMF-ZM-40S
|
||||
|
Flange Valve
|
1''
|
1.5''
|
|||||
|
DMF-ZF-25
|
DMF-ZF-40S
|
||||||
|
Embedded Valve
|
1''
|
1.5''
|
Outlet φ62mm
|
Outlet φ75
|
Outlet φ89
|
Outlet φ114
|
Outlet φ102
|
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
DMF-Y-102SA
|
|
