Name: 4V110-06 Airtac Type Air Controller Pneumatic Solenoid Valve 5 Way 2 Position 24V
Brand: BRANDO
SKU: 4V110-06
Rating: 4.7 (134 reviews)

Home Products Pneumatic Solenoid Valve

4V110-06 Airtac Type Air Controller Pneumatic Solenoid Valve 5 Way 2 Position 24V

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	4V110-06

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	Negotiation
Packaging Details:	Plastic bag, Box, Carton, Pallet
Delivery Time:	15 days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Solenoid Valve	Position & Way:	5 Way 2 Position
Port Size:	In=Out=1/8''	Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Body Material:	Aluminum Alloy	Fluid:	40 Micron Filtered Air
Working Pressure Range:	0.15 To 0.8 Mpa	Proof Pressure:	1.2 Mpa (175psi)
High Light:	4V110-06 Pneumatic Solenoid Valve , Airtac Air Solenoid Valve , Pneumatic Solenoid Valve 5/2 Way

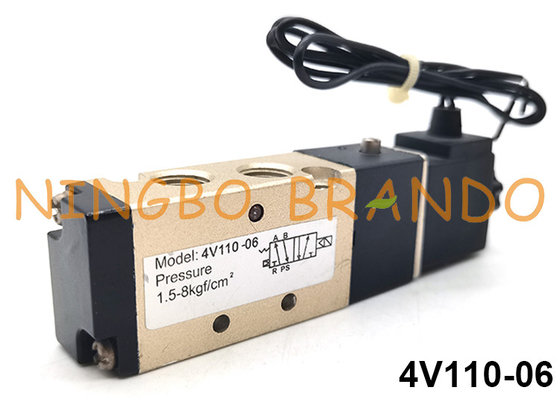

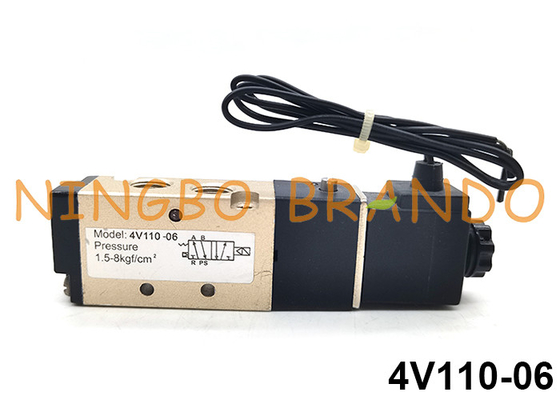

4V110-06 Airtac Type Air Controller Pneumatic Solenoid Valve 5 Way 2 Position 24V

This is a 4V110-06 Airtac type pneumatic solenoid valve, 1/8'' inlet and out let size, female thread (G, NPT, PT, BSP) connection, 5 way 2 position, several standard voltage levels are optional (12V DC, 24V DC, 110V AC, 220V AC).

Brando Supply:
1. 5/2 Way Pneumatic Solenoid Valve: 4V110-06, 4V120-06, 4V210-06, 4M220-06, 4V210-08, 4V220-08, 4V310-08, 4V320-08, 4V310-10, 4V410-15, 4V420-15, 4M110-06, 4M120-06, 4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, 4M320-10

2. 5/3 Way Pneumatic Solenoid Valve: 4V130C-06, 4V130E-06, 4V130P-06, 4V230C-06, 4V230E-06, 4V230P-06, 4V230C-08, 4V230E-08, 4V230P-08, 4V330C-08, 4V330E-08, 4V330P-08, 4V330C-10, 4V330E-10, 4V330P-10, 4V430C-15, 4V430E-15, 4V430P-15

3. 2/2 Way Pneumatic Solenoid Valve: 2V025-06, 2V025-08

Technical data of 4V Series Pneumatic Solenoid Valves:

Model	4V110-06 4V120-06	4V130C-06 4V130E-06 4V130P-06	4V110-08 4V120-08	4V130C-08 4V130E-08 4V130P-08
Fluid	40 Micron Filtered Air
Operation	Internal pilot or external pilot
Ports Size	In=Out=1/8''		In=Out=1/4''
Orifice Size	5.5 mm² (Cv=0.31)	5.0 mm² (Cv=0.28)	12.00 mm² (Cv=0.67)	9.00 mm² (Cv=0.50)
Valve Type	5 Way 2 Position	5 Way 3 Position	5 Port 2 Position	5 Way 3 Position
Operating Pressure	0.15 to 0.8MPa (21 to 114psi)
Proof Pressure	1.5MPa (215psi)
Operating Temperature	-5 to 50 ℃
Body Material	Aluminum Alloy
Max. Frequency	5 cycle/sec	3 cycle/sec	5 cycle/sec	3 cycle/sec

Main dimension of 4V110-06 Pneumatic Solenoid Valve:

4V110-06

Product Video of 4V110-06 Pneumatic Solenoid Valve:

Brando Factory Production of Pneumatic Solenoid Valves:

More Pneumatic Solenoid Valves for you to choose:

*4V100 Pneumatic Valves *4V200 Pneumatic Valves *4V300 Pneumatic Valves *4V400 Pneumatic Valves

*5/2 Way Pneumatic Valve *5/3 Way Pneumatic Valve *2/2 Way Pneumatic Valve *Pneumatic Fast Fitting

Brando is a Pneumatic Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
