Place of Origin: | Ningbo, China |
Brand Name: | BRANDO |
Certification: | CE, ISO |
Model Number: | 4V210-08 |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bag, Box, Carton, Pallet |
Delivery Time: | 15 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 200000 pcs per month |
Product Name: | Pneumatic Solenoid Valve | Fluid: | Air (to Be Filtered By 40 μm Filter Element) |
---|---|---|---|
Port Size: | In=Out=1/4'', Exhaust=1/8'' | Valve Type: | 5 Way 2 Position |
Operating Pressure: | 0.15 To 0.8 MPa (21 To 114 Psi) | Proof Pressure: | 1.2 MPa (175psi) |
Body Material: | Aluminum Alloy | Coil Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
High Light: | 4V210-08 Single Air Valve,Airtac Pneumatic Solenoid Valve,Pneumatic Solenoid Valve 5/2 Way 24V |

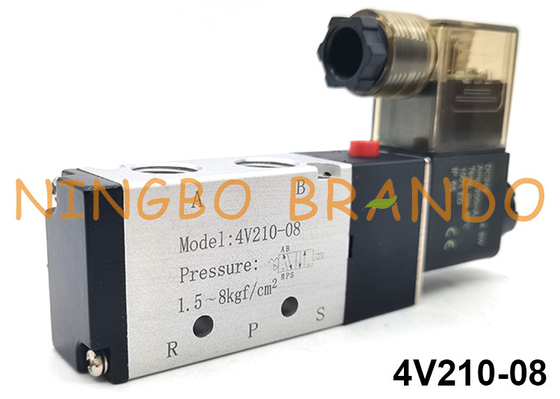

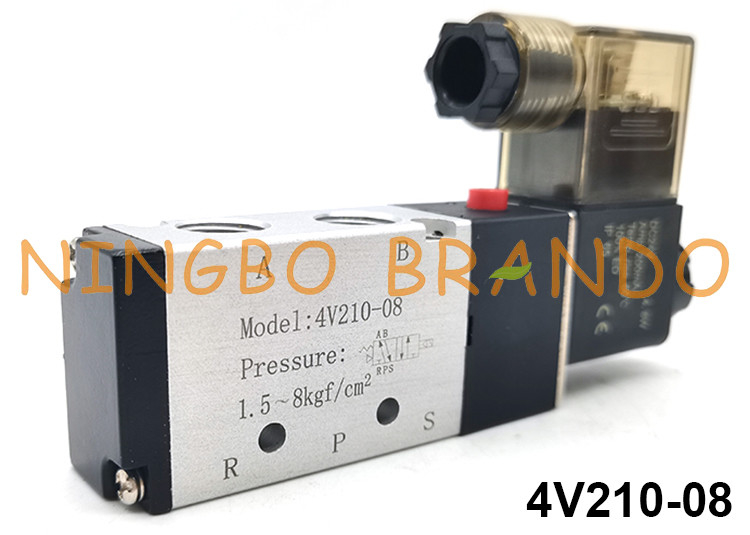

4V210-08 Single Coil Airtac Type Pneumatic Solenoid Valve 5/2 Way DC24V AC220V
Pneumatic solenoid valves are used to direct or stop the flow of compressed air to their appliances. They can be used for example to actuate a cylinder, a larger industrial valve or air tools. Directional control valves are generally classified by two numbers, the first digit indicates the number of ports, the second digit the number of states. The most common types are 3/2-way, 5/2-way and 5/3-way. The valves can be single or double acting (one or two solenoids). By changing the solenoid coil, different operating voltages can be achieved. Several models are prepared for manifold mouning, please note the platform size when selecting a valve and manifold.
Technical Data of 4V200 Series Solenoid Valve:
Model
|
4V210-06
|
4V220-06
|
4V230C-06
4V230E-06
4V230P-06
|
4V210-08
|
4V220-08
|
4V230C-08
4V230E-08
4V230P-08
|
Fluid
|
Air (to be filtered by 40 μm filter element)
|
|||||
Acting
|
internal pilot or external pilot
|
|||||
Port Size
|
in=out=exhaust=1/8''
|
in=out=1/4'', exhaust=1/8''
|
||||
Orifice Size
|
4V210-08, 4V220-08: 17.0mm² (Cv=1.0)
4V230C-08: 13.6mm² (Cv=0.8)
|
|||||
Vlave Type
|
5 way 2 position
|
5 way 3 postion
|
5 way 2 position
|
5 way 3 position
|
||
Operating Pressure
|
0.15 to 0.8 MPa (21 to 114 psi)
|
|||||
Proof Pressure
|
1.2MPa (175psi)
|
|||||
Temperature
|
-20 to +70℃
|
|||||
Body Material
|
Aluminum Alloy
|
|||||
Max Frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|
||
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
Main Dimension of 4V210-08 Solenoid Valve:
Video of 4V210-08 Solenoid Valve:
Production Video of Pneumatic Valve:
