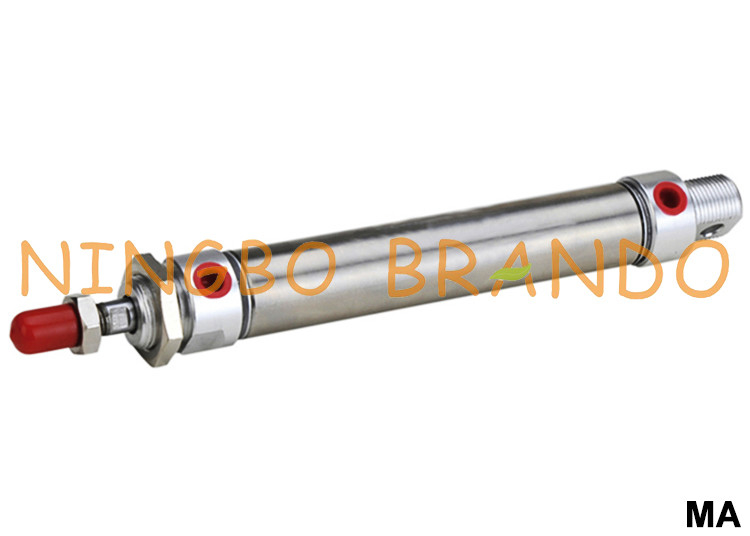

MA Series Pneumatic Air Cylinder AirTAC Type Stainless Steel 304

Product Details:

Place of Origin:	NINGBO, CHINA
Brand Name:	BRANDO or OEM
Certification:	CE ISO
Model Number:	MA

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	Bubble bag, wooden carton, pallet
Delivery Time:	7 working days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000PCS PER MONTH

Contact Now

Detailed Product Description

Part Name:	MA Mini Pneumatic Cylinder	Material:	SS304
Standard Or Non-standard:	Standard	Structure:	Plunger Cylinder
Power:	Pneumatic	Maximum Stroke:	500
High Light:	MA Series Pneumatic Air Cylinder , AirTAC Type Pneumatic Air Cylinder , AirTAC MA Series

MA Series Pneumatic Air Cylinder AirTAC Type Stainless Steel 304

Product features:

1 Execute the enterprise standard.
2 Piston seal uses heterogeneous two-way seal structure; compact size; oil storage.
3 Crash cushions are attached to the front and back covers to reduce reversing impact on the cylinder.
4 Back covers of specifications ensure more convenience in cylinder installation.
5 Front and back covers are connected to the cylinder by riveting agglomeration structure, reliable conjunction.
6 Cylinder body is made of highly precise stainless steel tube, high intensity, resistant to corrosion.
7 Cylinder and cylinder mounting accessories of specifications are provided
8 This series of cylinders are magnet attached.

Symbol

MA Series Pneumatic Air Cylinder AirTAC Type Stainless Steel 304 0

Specifications:

Bore Diameter		16	20	25	32	40	50	63
Acting Type	MSA MTA	Single Acting
Acting Type	MAR		Double Acting
Acting Type	MA MAD MAJ	Double Acting
Acting Type	MAC MACD MACJ		Double Acting Cushion
Working Medium	Air
Working pressure	Double acting	0.1--1.0MPa (15--145PSI)
Working pressure	Single acting	0.2--1.0MPa (28--145PSI)
Guranteed pressure	1.5MPa (215PSI)
Working temperature	-20--70℃
Speed range mm/s	Single acting: 50--800mm/s Double acting: 30--800mm/s
Cushion stroke tolerance	0--150(+1.0 -0) ＞150(+1.4 -0)
Cushion type	MAC MACD MACJ
Port Size	M5X0.8	PT1/8					PT1/4
