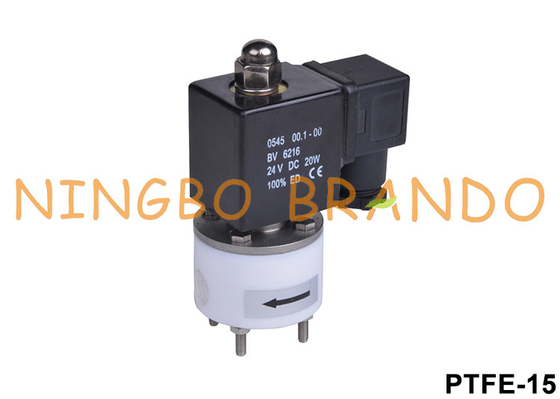

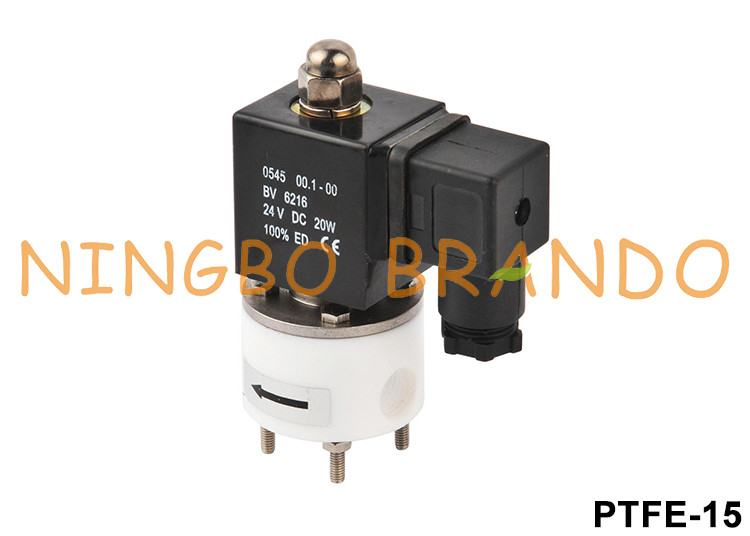

Name: 24V 220V 1/4'' 3/8'' Corrosive PTFE Solenoid Valve Acid Alkali Anti
Brand: Brando
SKU: PTFE
Rating: 4.8 (102 reviews)

Home Products Plastic Solenoid Valve

24V 220V 1/4'' 3/8'' Corrosive PTFE Solenoid Valve Acid Alkali Anti

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	PTFE

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner boxes, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Anti Corrosion Solenoid Valve	Function:	2 Way, Normally Closed
Port Size:	1/4'', 3/8''	Orifice Size:	1.2mm To 10mm
Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC	Fluids:	Acid & Alkali (Gas, Liquid)
Valve Body Material:	PTFE ()	Seal Material:	FKM, EPDM
Working Pressure Range:	0.01 To 0.6 MPa
High Light:	220V PTFE Solenoid Valve , 1/4'' PTFE Solenoid Valve , Anti Corrosive Solenoid Valve

24V 220V 1/4'' 3/8'' Corrosive PTFE Solenoid Valve Acid Alkali Anti

Feature of Valve Material:

1. Material of valve body, cap, core and pole: brand new PTFE resin.
2. Sealing material: high tech sealing part, anti-corrosion for strong acid, strong alkali, strong oxidant and organic solvent.
3. The unique patent design piston to replace the membrane sheets.
4. Fluid and matel parts (pluger,spring) have no direct contact, that means the fluid only contact with the plastics parts such as CPVC, PTFE, O-ring, which is anti-corrosive absolutely.
5. Push-in type sealing structure, more reliable sealing properties.

Outstanding Chemicals Resistance:

1. PTFE is always stable almost for any chemicals such as strong acid (98% H2SO4), HNO3, HCL and its weights and performance has no any change even if it is boiled in the aqua fortis.

2. PTFE has the properties of no damping and FR as well as it is also stable for oxidant and UV light, therefore it is climate resistance, anti-oxidant, anti-stain and fragilization resistance.

3. No pollution, no toxic, no odor, high purities and chemical inerthness, it will have no any effect on the fluid medium. 4. Wide Temperature application range: -50℃~+200℃.

Technical Data of Body Solenoid Valve:

Model	PTFE-1.2~6	PTFE-8	PTFE-10
Port Size	1/4''	3/8''	3/8''
Orifice Size	1.2-6mm	8mm	10mm
Medium	Weak Acid & Alkali (Gas, Liquid)
Working Pressure	0 to 0.02 Bar
Working Temperature	Max. +180℃
Seal	FKM, EPDM
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
