| Place of Origin: | China |
| Brand Name: | BRANDO |
| Certification: | ISO, CE |
| Model Number: | M50 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 sets per month |
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | NBR, FKM |
|---|---|---|---|

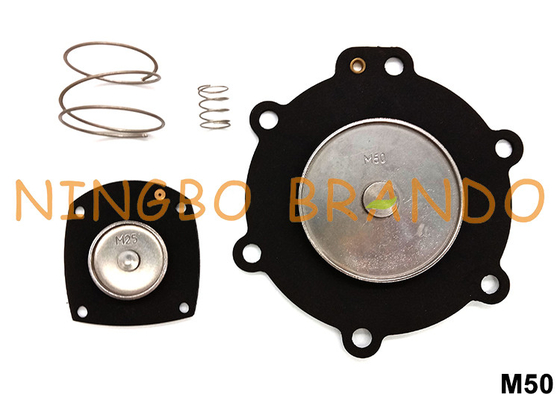

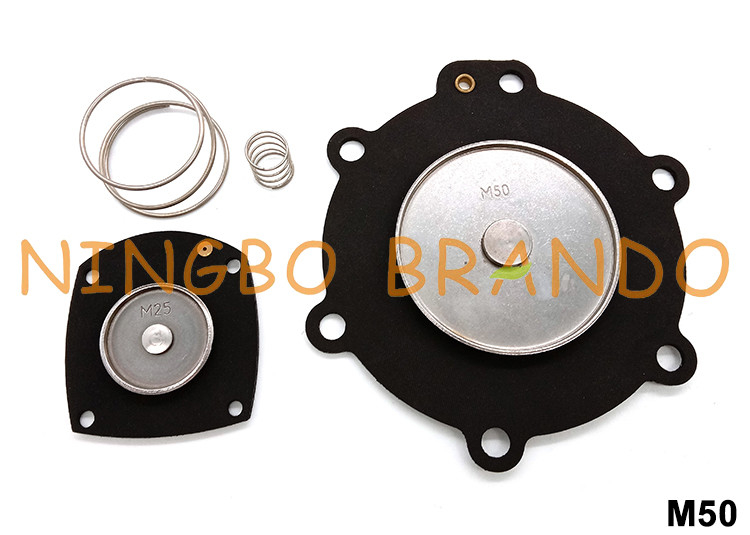

| 1 Set: | 1pc M50 Diaphragm, 1pc M25 Diaphragm, 2pcs Springs | Fitted Pulse Valve Model: | FP50, FM50, FP55, FM55, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65 |
| High Light: | M50 Diaphragm Repair Kit,2'' Diaphragm Repair Kit,Turbo M50 |
||
M50 2'' Diaphragm Repair Kit For Turbo Dust Collector Pulse Valve
M50 Diaphragm (Membrane) for Turbo pulse valve FP50, FM50, FP55, FM55, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.
Ordering Code of Diaphragm For Turbo Pulse Valve:
Dimension of M50 Diaphragm:
Video of M50 + M25 Diaphragm:
Pictures of Pulse Valve Membrane Production:
More Turbo Type Pulse Jet Valve for you to choose:
|
|
|
| Threaded Type | Submerged Type | Valve Diaphragm |
|
|
|
| Solenoid Coil | Solenoid Armature | Pulse Controller |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
